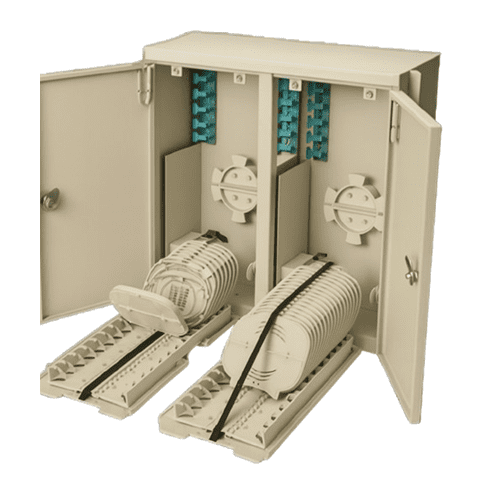

The DConnect Patch Free Fiber Distribution Box with PLC Splitters is a next-generation FTTH distribution solution designed to simplify deployment, reduce installation time, and eliminate field patching. Featuring a fully pre-terminated, patch-free architecture, this distribution box delivers fast, error-free fiber rollouts for high-density access networks. Available in 96-fiber, 160-fiber, and 256-fiber configurations, and supporting 2×32 or 2×64 PLC splitters, it offers scalability, reliability, and cost efficiency for ISPs, telecom operators, and large-scale FTTH projects.
The DCONNECT Patch-Free Fiber Distribution Box with Integrated PLC Splitters is a commercial-grade optical distribution enclosure engineered for modern FTTH, GPON, EPON, and XGS-PON networks. Designed for true patch-free deployment, the box is factory pre-terminated with PLC splitters and internal fiber routing—eliminating on-site patching, minimizing human error, and significantly accelerating installation timelines.
Available in 96F, 160F, and 256F capacities, the enclosure supports 2×32 or 2×64 PLC splitter configurations, allowing network operators to scale efficiently based on subscriber density and network topology. The organized internal fiber management system includes dedicated routing trays, splicing modules, and clear port labeling to ensure clean, reliable, and maintenance-friendly installations.
Built with a robust, weather-resistant enclosure, the distribution box is suitable for indoor and outdoor applications, with wall-mount or pole-mount installation options. Pre-connected G.657.A1/A2 low-bend-loss fibers enable compact routing inside the enclosure while maintaining excellent optical performance.
Fully compatible with GPON, EPON, and XGS-PON architectures, the DConnect Patch Free Fiber Distribution Box delivers stable signal distribution, faster deployment, and lower operational costs, making it an ideal choice for high-subscriber FTTH rollouts and telecom access networks.
The DCONNECT Patch-Free Fiber Distribution Box is manufactured in accordance with international quality, safety, and optical performance standards to ensure long-term reliability and network compatibility:
IEC 61300 Series – Basic test and measurement procedures for fiber optic interconnecting devices and passive components
IEC 61753-1 – Performance standards for passive optical components
IEC 61754-4 / IEC 61754-20 – Interface standards for SC/APC or LC/APC connectors
IEC 60825-1 – Safety of laser products
Telcordia GR-1209-CORE – Generic requirements for passive optical components
Telcordia GR-1221-CORE – Reliability assurance for passive optical components
RoHS 2011/65/EU – Restriction of Hazardous Substances compliance
ISO 9001:2015 – Quality Management System (QMS) certified manufacturing
IP Protection Rating – Compliant with relevant IP54/IP65 for outdoor enclosures (as applicable per model)
| Parameter | 2×32 PLC Splitter |
| Operating Wavelength | 1260 – 1650 nm |
| Fiber Type | G.657.A1 / G.652.D |
| Connector Type | SC/APC or LC/APC (Simplex) |
| Insertion Loss (Typical) | ≤ 17.0 dB |
| Insertion Loss (Maximum) | ≤ 18.5 dB |
| Return Loss | ≥ 60 dB |
| Uniformity | ≤ 2.0 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.3 dB |
| Directional Loss | ≥ 55 dB |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| FTTH Multi-Dwelling Unit (MDU) Distribution |
| PON Network Termination and Signal Splitting |
| Residential and Business Fiber Access |
| Fiber Aggregation Points in Urban or Rural Areas |
| Central Office, Cabinet, or Wall-Mounted Installations |
| Telecom Operator and ISP Last-Mile Distribution |
| FDC-2347096 | 96F Patch free splitting and distribution box with 3 x 2:32 PLC splitter | Â | Â | Â | ||||
| FDC-2347128 | Â 128F Patch free splitting and distribution box with 4 x 2:32 PLC splitter | Â | Â | |||||
| FDC-2347168 | 160F Patch free splitting and distribution box with 5 x 2:32 PLC splitter | Â | Â | |||||
| FDC-2347192 | Â 192F Patch free splitting and distribution box with 6 x 2:32 PLC splitter | |||||||
