Part Number: CC-C6-UUTP-PV-305-GY

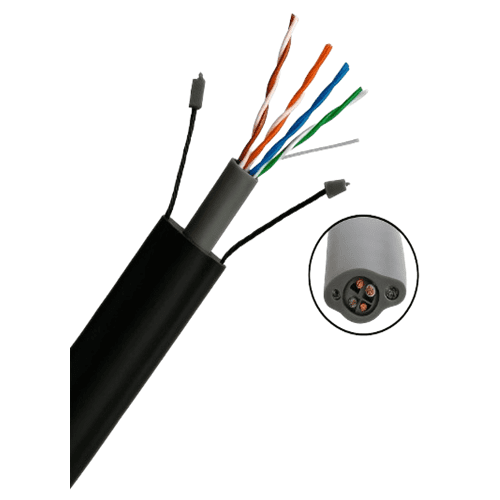

DCONNECT Category 6 U/UTP Elevator Cable is purpose-built to support high-speed Ethernet and data transmission protocols up to 1 Gbps, making it ideal for modern vertical applications such as CCTV surveillance in elevators. Engineered with 23 AWG solid bare copper conductors, HDPE insulation, a central PE cross separator, and enclosed in a durable yet flexible PVC jacket, this cable ensures both mechanical flexibility and electrical reliability.
Designed for vertical motion and repetitive movement, the cable integrates dual galvanized steel strength members on both sides, wrapped with non-woven tape for extra structural integrity. No special tools are needed for installation, making it fast and efficient for elevator shaft runs and confined indoor spaces.
Standards & Certifications
Class EA / Category 6
ANSI/TIA-568.2-D:2018 – Balanced twisted-pair telecommunications cabling
ISO/IEC 11801-1:2017 – Generic cabling for customer premises
EN 50173-1 / IEC 60603-7-51 / IEC 60512-99-001
IEC 61156-5:2009 + AMD1:2012 CSV – Cable specifications
BS EN 50173-1:2018 – Structured cabling standard
EN 50288-6-1:2013 – U/UTP installation cable standard
RoHS Compliant – Restriction of hazardous substances
💡 Application Support
1000BASE-T – Gigabit Ethernet
100BASE-T – Fast Ethernet
10BASE-T – Standard Ethernet
100VG-AnyLAN
1.2 / 2.4 Gbps ATM
Digital & Analog Video Transmission
IEEE 802.3af – Power over Ethernet (PoE)
IEEE 802.3at – Power over Ethernet Plus (PoE+)
| Component | Specification |
| Cable Type | Category 6 U/UTP (Unshielded Twisted Pair) |
| Conductor | Solid Bare Copper, 23 AWG |
| Conductor Diameter | 0.560 mm (±0.005 mm) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Insulation Diameter | 1.33 ± 0.5 mm |
| Pair Color Code | 1: White-Blue / Blue |
| 2: White-Orange / Orange | |
| 3: White-Green / Green | |
| 4: White-Brown / Brown | |
| Filler | PE Cross Separator Filler |
| Wrapping | Non-Woven Tape |
| Support Elements | 2 × Galvanized Steel Wires (Self-Supporting) |
| Outer Jacket Material | PVC, Flame-Retardant (IEC 60332-1-2), RoHS Compliant |
| Jacket Color | Black (Similar to RAL 9004) |
| Outer Diameter | Approx. Based on construction (not specified) |
| Packaging | 305m Drum |
| Category | Parameter | Specification |
| Electrical | Conductor DC Resistance | ≤ 95 Ω/km |
| DC Resistance Unbalance | ≤ 5% | |
| Dielectric Strength | 1000V / 1 min – No Breakdown | |
| Insulation Resistance | ≥ 5000 MΩ·km | |
| Mutual Capacitance | ≤ 5600 pF / 100 m @ 1 kHz | |
| Characteristic Impedance | 100 Ω nominal | |
| Reference Standard | ANSI/TIA-568.2-D | |
| Mechanical | Conductor Size | 23 AWG Solid Bare Copper |
| Minimum Bending Radius (Fixed) | ≥ 15 × Cable Outer Diameter | |
| Reinforcement | Dual Galvanized Steel Wires (Self-support) | |
| Packaging | 305m Drum | |
| Environmental | Operating Temperature | –20 °C to +75 °C |
| Installation Temperature | 0 °C to +55 °C | |
| Flame Retardancy | IEC 60332-1-2 | |
| Compliance | RoHS Compliant | |
| Sheath Physical | Before Aging – Tensile Strength | ≥ 10.0 MPa |
| Before Aging – Elongation | ≥ 350% | |
| Aging Period | 100 °C × 24 h × 10 days | |
| After Aging – Elongation | ≥ 300% | |
| Cold Bend Test (–20 °C ±2 °C × 4h) | No visible cracks |
| CC-C6-EUTP-PE-305-BK | Cat6 U/UTP Solid Cable Elevator Cable HDPE (23AWG) Black-305m Drum |
