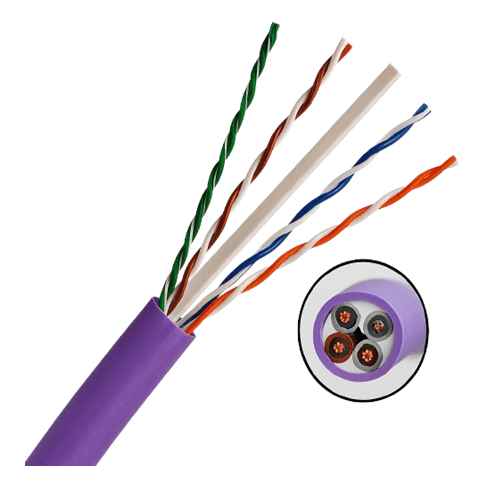

D-CONNECT Category 6 U/UTP LSZH cable is a high-performance data transmission cable designed for modern network infrastructure. Constructed with 23 AWG solid bare copper conductors, it supports high-speed applications up to 250 MHz. The cable exceeds ANSI/TIA-568-C.2 and ISO/IEC 11801 Class E performance standards, ensuring optimal signal integrity, low crosstalk, and minimal attenuation.
This Low Smoke Zero Halogen (LSZH) version provides enhanced fire safety and reduced toxic emissions, making it ideal for use in public buildings, data centers, and commercial environments. Supplied in a 305-meter pull box, the violet outer jacket offers easy cable identification.
Standards & Compliance
ANSI/TIA-568-C.2 (Category 6)
ISO/IEC 11801 Class E
ISO/IEC 11801-4:2017 (Remote powering applications)
IEC 61156-5 (Balanced copper cabling)
EN 50173 (European structured cabling standard)
RoHS Compliant (Restriction of Hazardous Substances)
PoE & Power Support:
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (PoE++)
Cisco UPoE
Power over HDBaseT™ (PoH) up to 100 watts
Supports up to 160 cables in a bundle for 100W PoE applications
| Component | Specification |
| Cable Type | Category 6 U/UTP (Unshielded Twisted Pair) |
| Conductor | Solid Bare Copper, 23 AWG |
| Conductor Diameter | 0.550 mm (±0.005 mm) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Insulation Diameter | 0.98 ± 0.05 mm |
| Color Code (Pairs) | 1: White-Blue / Blue |
| 2: White-Orange / Orange | |
| 3: White-Green / Green | |
| 4: White-Brown / Brown | |
| Separator | Central Cross-Filler (non-metallic) |
| Rip-Cord | Yes |
| Sheath Material | LSZH (Low Smoke Zero Halogen), RoHS Compliant |
| Sheath Thickness | 0.55 ± 0.05 mm |
| Outer Diameter | 6.1 ± 0.4 mm |
| Surface Finish | Clean, smooth, satin (frap) |
| Color | Violet (Other colors available on request) |
| Packaging | 305m pull box |
| Category | Parameter | Specification |
| Electrical | Mutual Capacitance | < 5.6 nF / 100 m |
| Capacitance Unbalance | 330 pF / 100 m | |
| Insulation Resistance | ≥ 500 MΩ | |
| Voltage Rating | Max. 72 VDC | |
| Nominal Velocity of Propagation (NVP) | 69% | |
| Dielectric Strength | 2.5 kV DC for 2 seconds | |
| Impedance (1–250 MHz) | 100 ± 15 Ω | |
| Delay Skew (1–250 MHz) | ≤ 45 ns / 100 m | |
| DC Resistance (20 °C) | Max. 9.38 Ω / 100 m | |
| DC Resistance Unbalance | Max. 5.0% | |
| Mechanical | Minimum Bending Radius (Install/Operate @ –20 °C ±1 °C) | < 4 × Cable Diameter |
| Maximum Pulling Force | 11.5 kg | |
| Cable Weight (305 m) | Approx. 12 kg | |
| Environmental | Operating Temperature Range | –20 °C to +70 °C |
| Storage Temperature Range | 0 °C to +60 °C | |
| Installation Temperature Range | 0 °C to +50 °C | |
| Sheath Performance | Flame Rating | CM (Communications Multipurpose) |
| Cold Bend Test @ –20 °C ±2 °C (4h) | No visible cracks at 8 × cable O.D. | |
| Jacket Color Options | Gray, Blue (custom colors available on request) | |
| Sheath Physical Properties | Before Aging – Tensile Strength | ≥ 13.5 MPa |
| Before Aging – Elongation | ≥ 150% | |
| After Aging – Tensile Strength | ≥ 12.5 MPa | |
| After Aging – Elongation | ≥ 125% | |
| Flame Properties | Flammability Test | ISO/IEC 60332-3-22 |
| Acid Gas Emission Test | IEC 60754-1 / IEC 60754-2 | |
| Smoke Density Test | IEC 61034-2 |
| CC-C6-UUTP-LZ-305-VL | Category 6 Unshielded Twisted Pair (UTP) 23 LSZH (Eca) Voilet – 305m box |
| CC-C6-UUTP-LZ-305-GY | Category 6 Unshielded Twisted Pair (UTP) 23 LSZH (Eca) Gray – 305m box |
| CC-C6-UUTP-LZ-305-BL | Category 6 Unshielded Twisted Pair (UTP) 23 LSZH (Eca) Blue – 305m box |
