Part Number: CC-C6A-UFTP-PV-305-GY

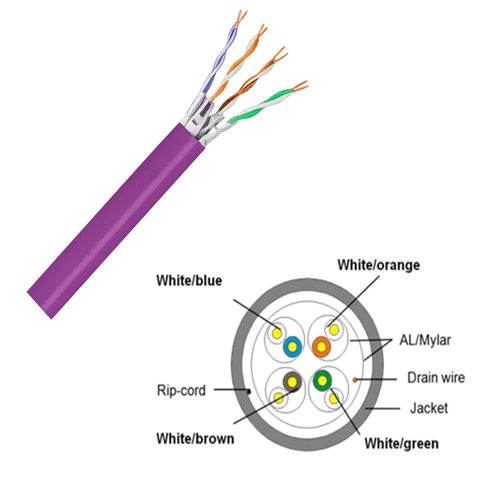

D-CONNECT Category 6A U/FTP PVC & LSZH Cable is a high-performance, flame-retardant, and halogen-free solution designed to meet the demanding requirements of modern high-speed networks. This cable well exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards, supporting data transmission frequencies up to 500 MHz and enabling 10 Gigabit Ethernet (10GBASE-T) over distances up to 100 meters.
Constructed with 23 AWG solid bare copper conductors and individual foil shielding on each twisted pair, the cable offers superior protection against EMI and crosstalk, ensuring high signal integrity even in electrically noisy environments. The PVC or LSZH jacket options provide flexibility for various installation environments — including commercial spaces, public buildings, and sensitive areas where low smoke and halogen-free performance is required.
Each cable is independently tested and certified to meet or exceed international performance standards, offering reliable and future-proof connectivity for data centers, enterprise networks, structured cabling systems, and digital infrastructure projects.
| Category | Details |
| Standards Reference | • TIA-568.2-D:2018 |
| • ISO/IEC 11801-1, 11801-2, 11801-4 | |
| • EN 50173-1 / EN 50173-2 | |
| • EN 50288-10-1 | |
| • IEC 61156-5 | |
| • UL Subject 444 | |
| • Flame Retardance: IEC 60332-1-1 / IEC 60332-1-2 | |
| • Smoke Density: IEC 61034-1 / IEC 61034-2 | |
| • Halogen Acid Gas: IEC 60754-2 | |
| • Environmental Compliance: RoHS Compliant | |
| • Power over Ethernet Standards: IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++), Cisco UPoE, Power over HDBaseT™ (PoH) up to 100W | |
| Applications | • 10GBASE‐T – 10 Gigabit Ethernet |
| • 1000BASE‐T / 100BASE‐T / 10BASE‐T – Ethernet Standards | |
| • 100VG-AnyLAN | |
| • 1.2 / 2.4 Gbps ATM | |
| • Digital & Analog Video Transmission | |
| • IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++) | |
| • Ideal for structured cabling, data centers, backbone networks, PoE-powered devices, and high-speed enterprise LANs |
| Component | Specification |
| Conductor | Solid Bare Copper |
| Conductor Diameter | Nominal: 0.560 mm (+0.005 / –0.005 mm) |
| Insulation Material | Skin-Foam-Skin Polyethylene (PE) |
| Insulation Diameter | 1.33 ± 0.05 mm (PVC) / 1.30 ± 0.05 mm (LSZH) |
| Core Color Code | 1. White/Blue |
| 2. White/Orange | |
| 3. White/Green | |
| 4. White/Brown | |
| Screening | Al/Mylar Tape |
| Drain Wire | Yes |
| Sheath Material | PVC / LSZH (RoHS Compliant) |
| Sheath Thickness | 0.65 ± 0.05 mm (PVC) / 0.50 ± 0.05 mm (LSZH) |
| External Diameter | 6.9 ± 0.4 mm (PVC) / 7.1 ± 0.5 mm (LSZH) |
| Surface Finish | Clean, Frap, Satiation |
| Color | As required (custom colors available) |
| Rip-Cord | Yes |
| Construction Standard | IEC 61156‐5 Edition 2.0 (Augmented Category 6A) |
| Category | Parameter | Specification |
| Electrical | Mutual Capacitance | < 5.6 nF / 100 m |
| Conductor Resistance | < 9.38 Ω / 100 m | |
| Conductor Loop Resistance | 19 Ω / 100 m | |
| Insulation Resistance | ≥ 5000 MΩ·km | |
| DC Resistance Unbalance | ≤ 5.0% | |
| Unbalanced-to-Ground Capacitance | ≤ 330 pF / 100 m | |
| Voltage Rating | Max. 72 V DC | |
| Spark Test | 2.5 kV DC | |
| Dielectric Strength | 2.5 kV DC for 2 seconds | |
| Transfer Impedance | ≤ 28 mΩ/m @ 10 MHz (Grade 2, IEC 61156) | |
| Coupling Attenuation | ≥ 75 dB | |
| Nominal Velocity of Propagation (NVP) | 69% (PVC), 78% (LSZH) | |
| Propagation Delay | 536 ns / 100 m @ 500 MHz | |
| Delay Skew | ≤ 45 ns / 100 m | |
| Characteristic Impedance | 100 ± 15% Ω (1–250 MHz), 100 ± 22% Ω (250–500 MHz) | |
| Mechanical | Bending Radius (Installation) | ≥ 8 × Cable Diameter |
| Bending Radius (Operation) | ≥ 4 × Cable Diameter | |
| Pulling Force | ≤ 110 N | |
| Nominal Cable Weight | ~15.2 kg / 305 m | |
| Environmental | Operating Temperature | –20°C to +75°C |
| Storage Temperature | –20°C to +75°C | |
| Installation Temperature | –5°C to +60°C | |
| Sheath Properties | Tensile Strength (Before Aging) | ≥ 13.5 MPa (PVC), ≥ 10.0 MPa (LSZH) |
| Elongation (Before Aging) | ≥ 150% (PVC), ≥ 125% (LSZH) | |
| Tensile Strength (After Aging) | ≥ 12.5 MPa (PVC), ≥ 8.0 MPa (LSZH) | |
| Elongation (After Aging) | ≥ 125% (PVC), ≥ 100% (LSZH) | |
| Aging Test | 100°C × 24 h × 7 days | |
| Cold Bend Test | No visible cracks at –20 ± 2°C × 4 h × 8× Cable O.D. | |
| Flame Performance | Flame Retardance | IEC 60332-1-1, IEC 60332-1-2 |
| Smoke Density | IEC 61034-1, IEC 61034-2 | |
| Halogen Acid Gas Emission | IEC 60754-2 |
| CC-C6A-UFTP-PV-305-GY | CAT6A, U/FTP, 4P, Horizontal Cable, 23 AWG, PVC, Gray, 305m Box |
| CC-C6A-UFTP-PV-305-BL | CAT6A, U/FTP, 4P, Horizontal Cable, 23 AWG, PVC, Blue, 305m Box |
| CC-C6A-UFTP-LZ-305-GY | CAT6A, U/FTP, 4P, Horizontal Cable, 23 AWG, LSZH, Gray, 305m Box |
| CC-C6A-UFTP-LZ-305-BL | CAT6A, U/FTP, 4P, Horizontal Cable, 23 AWG, LSZH, Blue, 305m Box |
