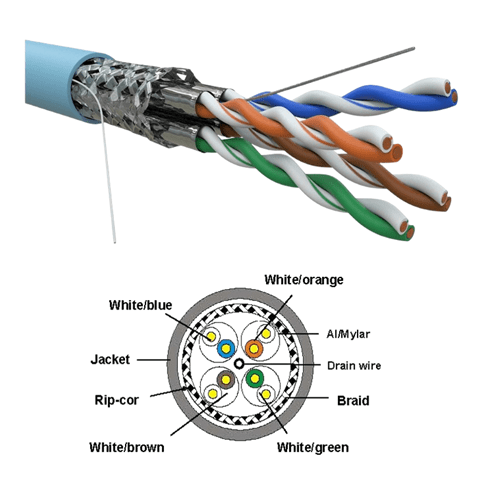

CONNECT CAT7A S/FTP 4Pairs cable with LSZH Sheath is a premium-grade shielded networking cable engineered for high-speed data transmission up to 1000 MHz. Each of the four pairs is individually shielded with aluminum foil, and the cable features an overall braid shield for enhanced protection against external electromagnetic interference (EMI) and crosstalk.
Designed with solid bare copper conductors and skin-foam-skin polyethylene insulation, the cable ensures superior signal performance and minimal attenuation. The robust LSZH (Low Smoke Zero Halogen) outer sheath enhances fire safety, making it ideal for indoor environments with strict safety standards such as data centers, hospitals, and commercial buildings.
This cable complies with ISO/IEC 61156-5 and EN 50288-4 standards and is suitable for 10GBase-T Ethernet, PoE++, video surveillance, and high-frequency backbone applications.
| ✅ International Standards : ISO/IEC 11801 Class FA,ISO/IEC 61156-5 (Performance & Construction), EN 50288-4 |
| ✅ Fire & Safety Compliance : |
| Flame Retardant: IEC 60332-1 |
| Low Smoke Emission: IEC 61034-2 |
| Halogen-Free: IEC 60754-1 & IEC 60754-2 |
| ✅ Electrical & Transmission : |
| Supports transmission frequencies up to 1000 MHz |
| Suitable for 10GBASE-T Ethernet and PoE++ (IEEE 802.3bt) |
| ✅ Environmental Compliance |
| RoHS (Restriction of Hazardous Substances) Compliant |
| REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Compliant |
| ✅ Testing |
| 100% Factory Tested for Continuity, Performance & Shielding Integrity |
| Component | Specification |
| Cable Category | CAT7A – S/FTP – 4 Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Diameter | 0.580 mm ±0.005 |
| Insulation Material | Skin-Foam-Skin Polyethylene (PE) |
| Insulation Diameter | 1.350 mm ±0.05 |
| Pair Shielding | Aluminum Foil (Al/Mylar) per pair |
| Drain Wire | Yes |
| Overall Shielding | Aluminum-Magnesium Alloy Braid |
| Shield Coverage | ≥30% |
| Sheath Material | LSZH – Low Smoke Zero Halogen (RoHS Compliant) |
| Sheath Thickness | 0.55 mm ±0.05 |
| Outer Diameter (O.D.) | 7.8 mm ±0.5 |
| Surface Finish | Clean |
| Jacket Color | TBD (Standard: Grey or Black) |
| Surface Printing | Black Ink, Letter Height: 3.0 ±0.3 mm |
| Printing Tolerance | ≤±0.5% / 1m |
| Core Identification | Pair 1: White/Blue, Pair 2: White/Orange |
| Pair 3: White/Green, Pair 4: White/Brown | |
| Rip Cord | Yes |
| Packing | 305 ±1.0 m per Wooden Drum |
| Tray Dimensions | As per requirement |
| Category | Parameter | Specification |
| Electrical | Impedance (1–100 MHz) | 100 ±15 Ω |
| Impedance (100–250 MHz) | 100 ±18 Ω | |
| Impedance (250–1000 MHz) | 100 ±25 Ω | |
| DC Resistance | ≤ 9.38 Ω / 100 m | |
| DC Resistance Unbalance | ≤ 2.0% | |
| Capacitance (Unbalanced-to-Ground) | ≤ 330 pF / 100 m | |
| Delay Skew | ≤ 25 ns / 100 m | |
| Velocity of Propagation | 74% | |
| Mechanical | Conductor Diameter | 0.580 ±0.005 mm |
| Insulation Diameter | 1.350 ±0.05 mm | |
| Overall Cable Diameter | 7.8 ±0.5 mm | |
| Minimum Bending Radius | ≥ 8 × Outer Diameter | |
| Surface Printing | Black, 3.0 ±0.3 mm height, ≤ ±0.5% / m | |
| Rip Cord | Yes | |
| Environmental | Sheath Material | LSZH, RoHS Compliant |
| Sheath Thickness | 0.55 ±0.05 mm | |
| Tensile Strength (Before / After Aging) | ≥10.0 / ≥8.0 MPa | |
| Elongation (Before / After Aging) | ≥125% / ≥100% | |
| Cold Bend Test | –20 ±2°C × 4h @ 8×O.D., No visible cracks |
| Part Number : CC-C7A-S/FTP-LZ-305-GY | CAT7A S/FTP Cable, 4 Pairs, LSZH Jacket, Solid Copper, 1000MHz, 305m Drum |
