D-CONNECT Category 6A S/FTP PE External Cable is engineered specifically for high-performance outdoor applications. Tested up to 500 MHz, it supports 10 Gigabit Ethernet over the full 100-meter channel, ensuring robust and reliable network performance.

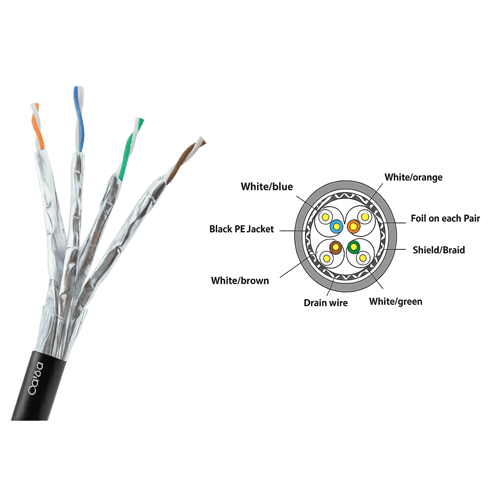

Each of the four twisted pairs is individually shielded with aluminum foil, and the overall cable is protected by a tinned copper braided shield. This dual-layer shielding provides superior electromagnetic compatibility (EMC), excellent noise immunity, and outstanding alien crosstalk performance.
Constructed with 23 AWG solid bare copper conductors and insulated with high-density polyethylene (HDPE), the cable is jacketed in UV-stabilized, weather-resistant polyethylene (PE), making it highly durable in harsh environmental conditions.
| Category | Details |
| Standards Compliance | • Class EA / Category 6A |
| • ANSI/TIA-568.2-D:2018 | |
| • ISO/IEC 11801-1:2017 | |
| • EN 50173-1 / BSEN 50173-1:2018 | |
| • EN 50288-6-1:2013 | |
| • IEC 60603-7-51 / IEC 60512-99-001 | |
| • IEC 61156-5:2009 + AMD1:2012 (CSV consolidated) | |
| • RoHS Compliant | |
| Supported Applications | • 10GBASE-T – 10 Gigabit Ethernet |
| • 1000BASE-T / 100BASE-T / 10BASE-T Ethernet | |
| • 100VG-AnyLAN | |
| • 1.2 / 2.4 Gbps ATM | |
| • Digital and Analog Video Transmission | |
| • IEEE 802.3af – Power over Ethernet (PoE) | |
| • IEEE 802.3at – Power over Ethernet Plus (PoE+) |
| Component | Specification |
| Conductor | Solid Bare Copper, Nominal O.D.: 0.560 mm (+0.005 / –0.005 mm) |
| Insulation | Skin-Foam-Skin PE, Diameter: 1.330 ± 0.5 mm |
| Core Color Code | 1. White–Blue / Blue 2. White–Orange / Orange 3. White–Green / Green 4. White–Brown / Brown |
| Inner Shielding | Aluminum Foil with Drain Wire (Yes) |
| Outer Shielding | Aluminum-Magnesium Alloy, 0.12 mm, Coverage ≥ 30% |
| Wrapping | Polyester Tape Isolation Wrap |
| Sheath Material | LDPE (Low-Density Polyethylene), RoHS Compliant |
| Sheath Thickness | 0.55 ± 0.05 mm |
| Outer Diameter | 7.6 ± 0.5 mm |
| Surface Finish | Clean |
| Color | Black |
| Surface Printing | Letter Height: 3.0 ± 0.3 mm, White Ink, Print Error ≤ ±0.5% per 1 m |
| Rip-Cord | Yes |
| Drain Wire at Sheath | No |
| Packing | Drum |
| Carton Dimension | — |
| Category | Parameter | Specification |
| Electrical | Mutual Capacitance | < 5.6 nF / 100 m |
| DC Conductor Resistance | ≤ 9.38 Ω / 100 m | |
| Conductor Loop Resistance | 19 Ω / 100 m | |
| DC Resistance Unbalance | ≤ 2.0% | |
| Unbalanced-to-Ground Capacitance | ≤ 330 pF / 100 m | |
| Insulation Resistance | ≥ 5000 MΩ·km | |
| Voltage Rating | Max. 72 V DC | |
| Dielectric Strength | 2.5 kV DC for 2 sec | |
| Spark Test | 2.5 kV DC | |
| Characteristic Impedance | 100 ±15% (1–250 MHz), 100 ±22% (250–500 MHz) | |
| Nominal Velocity of Propagation (NVP) | 69% – 78% | |
| Propagation Delay | 536 ns / 100 m @ 500 MHz | |
| Delay Skew | ≤ 45 ns / 100 m | |
| Coupling Attenuation | ≥ 75 dB | |
| Transfer Impedance | ≤ 28 mΩ/m @ 10 MHz (IEC 61156-5 Grade 2) | |
| Mechanical | Conductor | 23 AWG Solid Bare Copper |
| Shielding | Foil per pair + Overall braid | |
| Rip Cord | Yes | |
| Drain Wire | Not included | |
| Min. Bending Radius (Installation) | ≥ 8 × Cable Diameter | |
| Min. Bending Radius (Operation) | ≥ 4 × Cable Diameter | |
| Maximum Pulling Force | ≤ 110 N | |
| Nominal Weight | 12 – 15.2 kg / 305 m | |
| Environmental | Operating Temperature | –20°C to +70°C / +75°C |
| Storage Temperature | –20°C to +75°C | |
| Installation Temperature | –5°C to +60°C | |
| Sheath Properties | Jacket Material | PE / LDPE, UV-resistant, RoHS Compliant |
| Tensile Strength (Before Aging) | ≥ 13.5 MPa (PVC), ≥ 10.0 MPa (LSZH) | |
| Elongation (Before Aging) | ≥ 150% (PVC), ≥ 125% (LSZH) | |
| Aging Test | 100°C × 24 h × 7–10 days | |
| After Aging – Tensile Strength | ≥ 12.5 MPa (PVC), ≥ 8.0 MPa (LSZH) | |
| After Aging – Elongation | ≥ 125% (PVC), ≥ 100% (LSZH) | |
| Cold Bend Test | –20 ±2°C, 4 h @ 8 × O.D. – No visible cracks | |
| Flame Performance | Flame Retardance | IEC 60332-1-1, IEC 60332-1-2 |
| Smoke Density | IEC 61034-1, IEC 61034-2 | |
| Halogen Acid Gas Emission | IEC 60754-2 | |
| Packaging | Length | 305m box or drum (custom lengths available) |
| CC-C6A-S/FTP-PE-305-BK | Category6A shielded Twisted Pair (S/FTP)23AWG cable PE External Outdoor (BLACK)-305MTR Box |
