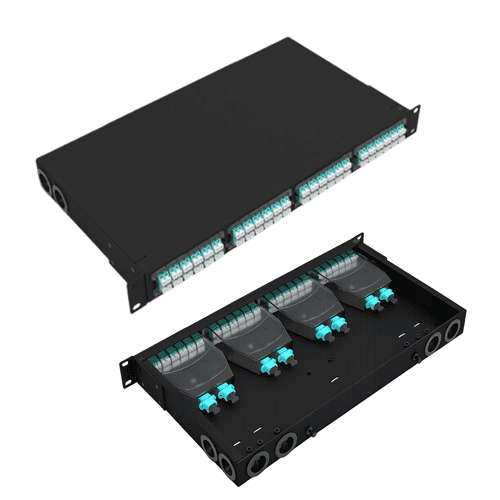

The D-CONNECT DC-FM4M1 High-Density Splice Fiber Patch Panel is a 1U rack-mounted fiber distribution enclosure designed for MPO pre-terminated, adapter-based, and fiber splicing applications.
It supports up to 4 × 24-fiber MPO cassette modules, providing a total capacity of 96 fibers in a compact 1U standard 19-inch rack format.
With its modular structure, high-density design, and efficient fiber management system, the DC-FM4M1 is ideal for data centers, enterprise networks, telecom rooms, and ISP infrastructure where space-saving and scalability are essential.
| ISO/IEC 11801 – Generic Cabling for Customer Premises |
| ANSI/TIA-568.3-D – Optical Fiber Cabling Components Standard |
| IEC 60297 – Mechanical Structures for Electronic Equipment (19” Rack Standard) |
| IEC 61754 / 61755 – Fiber Optic Connector Interfaces & Performance |
| RoHS Directive (EU 2011/65/EU) – Restriction of Hazardous Substances |
| CE Compliance – European Conformity for Safety and Quality |
| Category | Specification | |
| Product Model | DC-FM4M1 | |
| Mounting Type | Standard 19-inch Rack Mount (Fixed Type) | |
| Form Factor | 1U High-Density Patch Panel | |
| Width | 482.6 mm (19″) | |
| Mounting Width | 465.1 mm | |
| Depth | 436.2 mm | |
| Height | 43.8 mm (1U) | |
| MPO Cassette Capacity | Up to 4 × 24F MPO Cassettes | |
| Maximum Fiber Capacity | 96 Fibers | |
| Front Configuration | Modular slots for MPO cassettes or adapter plates | |
| Cassette Type | Pluggable MPO Cassette Modules | |
| Adapter Compatibility | LC / SC / ST / FC / MPO | |
| Structure | Compact, modular, scalable design | |
| Material | SPCC Steel Body with Aluminum Top Cover | |
| Surface Finish | Black Powder Coating (RAL 9005) | |
| Fiber Management | Optimized routing with bend radius protection | |
| Rear cable entry ports with protective grommets | |
| Mounting Accessories | Rack mounting brackets included | |
| Internal Accessories | Fiber management components for routing and organization | |
| Access | Front access for easy installation and maintenance | |
| Application Support | MPO Pre-terminated, Adapter-based, and Splicing |
| Data Centers – High-density fiber distribution for core, aggregation, and access layers |
| Enterprise Networks – Structured cabling for offices, campuses, and commercial buildings |
| Telecom Networks – Fiber distribution and cross-connect in central offices and telecom rooms |
| ISP Infrastructure – Backbone and access network fiber management |
| High-Speed Networks – Supports 10G / 25G / 40G / 100G optical transmission systems |
| FTTH / FTTx Networks – Distribution and termination in fiber access networks |
| MPO/MTP Systems – Ideal for pre-terminated MPO backbone deployments |
| Network Expansion – Scalable solution for future fiber capacity upgrades |
| DC-FM4M1-XX | 1U High-Density Fiber Patch Panel Empty Panel (Supports 4 × 24F MPO Cassettes) |
| DC-FM4M1-04 | 1U High-Density Fiber Patch Panel loaded with 4 × 24F MPO Cassettes |
