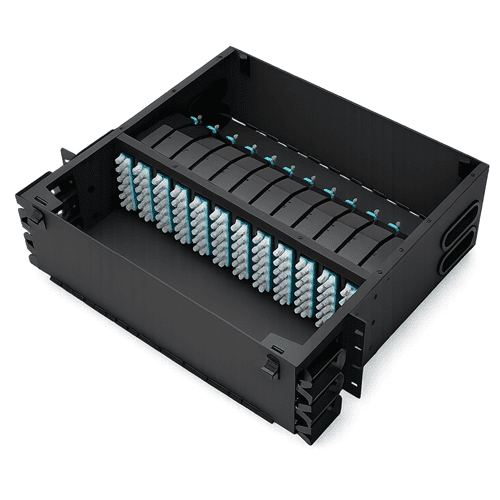

The D-CONNECT DC-FM12M3 High-Density Fiber Patch Panel is a 3U modular rack-mounted solution designed for MPO pre-terminated and fusion splicing applications. It supports a maximum installation density of 288 fibers using 12 × 24F MPO cassette modules, making it ideal for high-capacity fiber network environments.
Engineered for modern data centers, enterprise networks, and telecom infrastructure, the panel ensures stable performance, scalability, and simplified fiber management. Its modular architecture allows flexible deployment, reducing installation time, operational complexity, and overall infrastructure cost while improving efficiency.
TIA-568-C.3 – Optical Fiber Cabling Components Standard
IEC 61754 Series – Fiber Optic Connector Interfaces
IEC 61753 Series – Performance Standards for Fiber Optic Devices
TIA/EIA-604 (FOCIS) – Fiber Optic Connector Intermateability Standards
ISO/IEC 11801 – Generic Cabling for Customer Premises
RoHS Compliance – Restriction of Hazardous Substances
CE Compliance – Conformity with European Safety Standards
| Design & Structure | Dimensions & Accessories |
| Mounting Type | 19-inch Rack Mount |
| Height | 3U |
| Dimension (W × D × H) | 482.6 × 430 × 132.7 mm (as per drawing) |
| Mounting Width | 465.1 mm |
| Adapter Type | LC / SC / FC / ST |
| Color | Black (RAL 9005) |
| Material | SPCC Steel Body, Aluminum Top Cover |
| Surface Finish | Powder Coated |
| Compatibility | Supports up to 12 × 24F MPO cassette modules (Total 288 fibers) |
| Data Centers |
| Enterprise Networks |
| Telecom Networks |
| ISP Infrastructure |
| FTTH / FTTx Networks |
| High-Speed Optical Networks (10G / 25G / 40G / 100G) |
| DC-FM12M3-XX | 3U High-Density Fiber Patch Panel Empty Panel (Supports 12 × 24F MPO Cassettes) Up to 288 Fibers |
| DC-FM12M3-12 | 3U High-Density Fiber Patch Panel Loaded Panel 12 × 24F MPO Cassettes Up to 288 Fibers |
