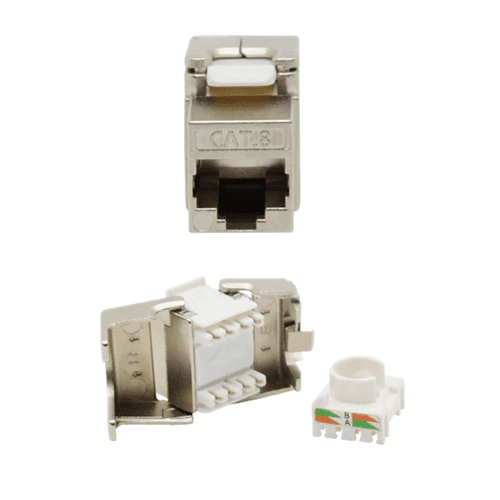

The Dconnect Category 8 Mini Size 180° Shielded Keystone Jack is engineered for ultra-high-speed data transmission, supporting frequencies up to 2000 MHz and meeting the requirements for 40GBASE-T applications. Its rugged zinc die-cast shielded housing offers superior EMI/RFI protection, while the innovative tool-free termination ensures fast, reliable installation. The compact design fits standard 1U 24-port and 1U 48-port patch panels or faceplates, making it suitable for environments from small home networks to large-scale data centers.
| ANSI/TIA-568.2-D – Balanced Twisted-Pair Telecommunications Cabling and Components |
| ISO/IEC 11801-1 Class I – Generic Cabling for Customer Premises |
| ISO/IEC 60603-7-81 – Connectors for Electronic Equipment – Detail Specification for 8-way Shielded Connectors |
| IEC 60512-99-001 – Test Procedures for Connector Performance |
| IEEE 802.3bq – 25GBASE-T and 40GBASE-T Ethernet |
| IEEE 802.3af – Power over Ethernet (PoE) |
| IEEE 802.3at – Power over Ethernet Plus (PoE+) |
| IEEE 802.3bt – Power over Ethernet Plus Plus (PoE++) |
| RoHS Directive 2011/65/EU – Restriction of Hazardous Substances |
| REACH Compliant – Registration, Evaluation, Authorization, and Restriction of Chemicals |
| FLUKE Certified – Verified channel and permanent link performance |
| 3P Certified – Independent third-party performance verification |
| Component | Specification |
| Housing | Zinc die-casting with high-quality nickel plating |
| Plastic Parts | High-quality engineering plastic |
| PCB | FR-4, 1.2 mm thickness |
| Jack Wire | 0.35 mm phosphor bronze, gold over nickel plating |
| IDC Conductor | 0.5 mm phosphor bronze, tin-plated |
| Contact Compatibility | Accommodates 22–24 AWG solid conductors |
| Performance Test | TIA Cat.8 Channel – Worst Pair NEXT Headroom ≥ 2.0 dB |
| Category | Parameter | Specification |
| Electrical | Insulation Resistance | ≥ 500 MΩ |
| Contact Resistance | ≤ 20 mΩ | |
| DC Resistance | ≤ 0.3 Ω | |
| DC/AC Voltage Endurance | DC 1000V / AC 750V for 1 min | |
| Mechanical | Mating Cycles | ≥ 750 cycles |
| IDC Mating Cycles | ≥ 20 cycles | |
| Insertion Type | Tool-free termination | |
| Environmental | Operating Temperature | -10°C to 60°C |
| Operating Humidity | 10% ~ 90% RH | |
| Storage Temperature | -40°C to 68°C |
| KJ-8-475106YY | Cat.8 180° shielded keystone jack, mini size, tool-free, supports 25/40GBASE-T up to 2 GHz. |
