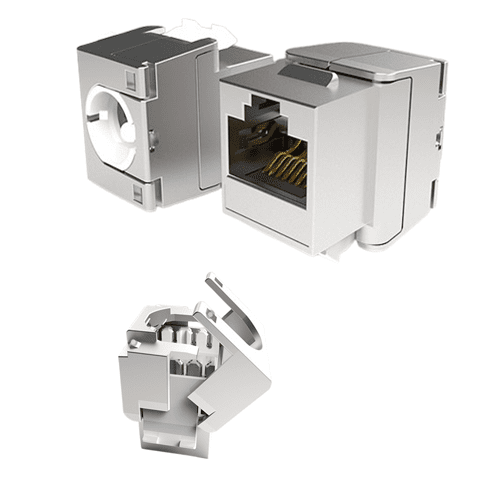

The D-Connect Cat6 FTP Keystone Jack 180° Toolless Mini Version is a high-performance shielded connector designed for fast, reliable, and secure terminations in structured cabling systems. Engineered to support both 568A and 568B wiring schemes, this mini keystone jack offers a compact footprint ideal for high-density installations. The tool-less design allows for quick, hassle-free connections without the need for a punch-down tool, while the 180° rear-entry layout ensures efficient cable management.
Constructed with a zinc die-cast housing and nickel plating, it delivers excellent EMI shielding and long-term durability. Fully compliant with ANSI/TIA-568-C.2, ISO/IEC 11801, and RoHS standards, this jack is suitable for use in professional data networks, enterprise environments, and shielded applications requiring Category 6 performance.
| ANSI/TIA-568-C.2 – Structured cabling standard for Category 6 performance |
| Â |
| ISO/IEC 11801:2002/Amd.2:2010 – International standard for Class E cabling systems |
| Â |
| YD/T 926.3-2009 – Chinese communication cabling system standard |
| Â |
| ISO/IEC 60603-7 – Compliant modular connector interface specification |
| Â |
| RoHS Directive 2002/95/EC – Restriction of hazardous substances compliant |
| Â |
| FCC 68.500 – Compliant with mechanical and electrical performance requirements |
| Â |
| UL 94V-0 – Flame-retardant plastic components for enhanced fire safety |
| Â |
| ANSI/TIA-606-C – Supports compliant color coding and labeling for identification |
| Housing | Zinc die-cast with high-quality nickel plating |
| Plastic Parts | High-impact flame-retardant plastic, UL 94V-0 rated |
| PCB | FR-4, 1.2 mm thickness, UL 94V-0 |
| Jack Wire Contacts | 0.35 mm phosphor bronze, gold over nickel plating |
| IDC Conductors | 0.5 mm phosphor bronze, tin-plated |
| IDC Cap | PC material, UL 94V-0, white color |
| Contact Compatibility | Accommodates 23–26 AWG solid conductors |
| Wiring Scheme | Supports both T568A and T568B wiring configurations |
| Category | Parameter | Specification |
| Electrical | Current Rating | 1.5 Amps |
|  | Insulation Resistance | ≥ 500 MΩ |
|  | Contact Resistance | ≤ 10 mΩ |
|  | DC Resistance | ≤ 0.1 Ω |
| Â | DC/AC Volt Endurance | DC 1000V / AC 750V (1 min) |
| Mechanical | Plug Insertion Life | ≥ 750 Cycles (FCC Compliant RJ-45 Plug) |
|  | Plug & Jack Contact Force | ≥ 100 Grams (FCC Compliant RJ-45 Plug) |
|  | Plug Retention Force | ≥ 11 lbf |
| Â | Durability | 200 Termination Cycles |
| Environmental | Operating Temperature | –10°C to +60°C |
| Â | Operating Humidity | 10% to 90% RH |
|  | Storage Temperature | –40°C to +68°C |
| KJ-C6-451104YY | CAT6 FTP Keystone Jack, 180° Unshuttered, 568A+B, Ty11/Ty51, Toolless or Punch-down Termination |
