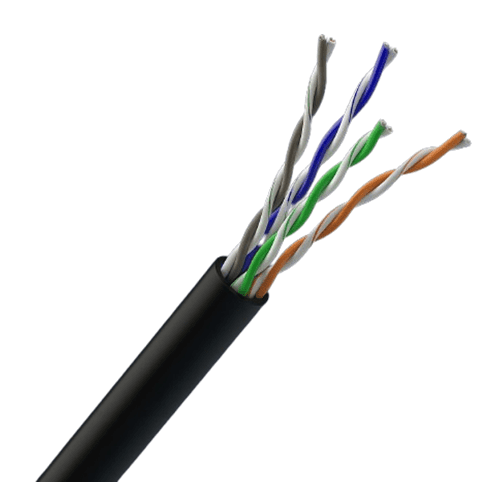

D-CONNECT Category 6 U/UTP HDPE Cable is engineered for enhanced durability and reliable performance in demanding environments. Constructed with 23 AWG solid bare copper conductors and insulated with high-density polyethylene (HDPE), the cable delivers superior electrical performance with excellent signal integrity. It is ideal for installations requiring strong mechanical properties such as ducting, structured conduits, and semi-exposed industrial routes where resistance to deformation and impact is essential.
Standards & Compliance
ANSI/TIA-568-C.2 (Category 6)
ISO/IEC 11801 Class E
ISO/IEC 11801-4:2017 (Remote powering applications)
IEC 61156-5 (Balanced copper cabling)
EN 50173 (European structured cabling standard)
RoHS Compliant (Restriction of Hazardous Substances)
PoE & Power Support:
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (PoE++)
Cisco UPoE
Power over HDBaseT™ (PoH) up to 100 watts
Supports up to 160 cables in a bundle for 100W PoE applications
| Component | Specification |
| Cable Type | Category 6 U/UTP (Unshielded Twisted Pair) |
| Conductor | Solid Bare Copper, 23 AWG |
| Conductor Diameter | 0.550 mm (±0.005 mm) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Insulation Diameter | 0.98 ± 0.05 mm |
| Color Code (Pairs) | 1: White-Blue / Blue |
| 2: White-Orange / Orange | |
| 3: White-Green / Green | |
| 4: White-Brown / Brown | |
| Separator | Central Cross-Filler (non-metallic) |
| Rip-Cord | Yes |
| Sheath Material | Low-Density Polyethylene (LDPE), RoHS Compliant |
| Sheath Thickness | 0.55 ± 0.05 mm |
| Outer Diameter | 6.1 ± 0.4 mm |
| Surface Finish | Clean, smooth, satin (frap) |
| Color | Black |
| Packaging | 305m Pull Box |
| Category | Parameter | Specification |
| Electrical | Mutual Capacitance | < 5.6 nF / 100 m |
| Capacitance Unbalance | 330 pF / 100 m | |
| Insulation Resistance | ≥ 500 MΩ | |
| Voltage Rating | Max. 72 VDC | |
| Nominal Velocity of Propagation (NVP) | 69% | |
| Dielectric Strength | 2.5 kV DC for 2 seconds | |
| Impedance (1–250 MHz) | 100 ± 15 Ω | |
| Delay Skew (1–250 MHz) | ≤ 45 ns / 100 m | |
| DC Resistance (20 °C) | Max. 9.38 Ω / 100 m | |
| DC Resistance Unbalance | Max. 5.0% | |
| Mechanical | Minimum Bending Radius (Install/Operate @ –20 °C ±1 °C) | < 4 × Cable Diameter |
| Maximum Pulling Force | 11.5 kg | |
| Cable Weight (305 m) | Approx. 12 kg | |
| Environmental | Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | 0 °C to +60 °C | |
| Installation Temperature | 0 °C to +50 °C | |
| Sheath Performance | Flame Rating | CM (Communications Multipurpose) |
| Cold Bend Test @ –20 °C ±2 °C (4h) | No visible cracks at 8 × cable O.D. | |
| Jacket Color Options | Gray, Blue (custom colors available) | |
| Sheath Physical Performance | Before Aging – Tensile Strength | ≥ 13.5 MPa |
| Before Aging – Elongation | ≥ 150% | |
| After Aging – Tensile Strength | ≥ 12.5 MPa | |
| After Aging – Elongation | ≥ 125% | |
| Outer Jacket Physical Properties | Before Aging – Tensile Strength | ≥ 10.0 MPa |
| Before Aging – Elongation | ≥ 350% | |
| Aging Period | 100 °C × 24 h × 10 days | |
| After Aging – Elongation | ≥ 300% | |
| Cold Bend @ –20 °C ±2 °C (4h) | No visible cracks |
| CC-C6-UUTP-PE-305-BK | Category 6 Unshielded Twisted Pair (UTP) 23 AWG cable PE EXT(BLACK) – 305m box |
