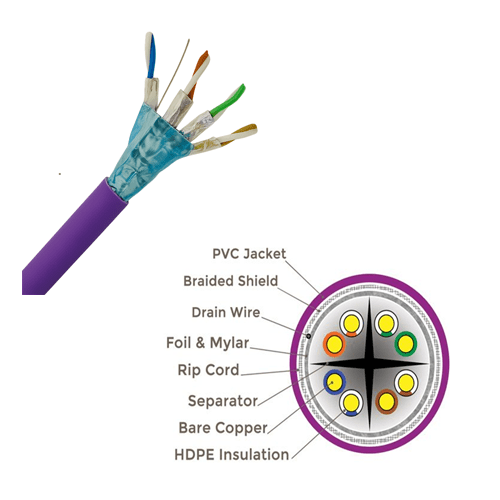

he D-CONNECT Category 6A S/FTP Cable (LSZH Violet) is a high-performance, shielded copper cable engineered to support 10 Gigabit Ethernet (10GBASE-T) applications over 100 meters with minimal signal loss and superior protection from electromagnetic interference (EMI). Constructed with 23 AWG solid bare copper conductors, individually foil-shielded pairs (F/UTP), and an overall braided screen (S/FTP), it ensures exceptional Class EA performance up to 500 MHz.
This cable is jacketed in a Low Smoke Zero Halogen (LSZH) compound, making it suitable for use in indoor horizontal runs within high-safety environments such as commercial buildings, data centers, and public infrastructure.
| Category | Details |
| Standards Reference | • ANSI/TIA-568-C.2 Cat 6A |
| • ISO/IEC 11801, ISO/IEC 11801-4 | |
| • EN 50173, EN 50288-10-1 | |
| • IEC 61156-5 | |
| • RoHS Compliant | |
| • Flame Retardance: IEC 60332-1-1, IEC 60332-1-2 | |
| • Smoke Emission: IEC 61034-1, IEC 61034-2 | |
| • Halogen Acid Gas Emission: IEC 60754-2 | |
| • PoE Standards: IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++), Cisco UPoE, Power over HDBaseT™ (PoH) — up to 100W (Type 3 & Type 4) | |
| Applications | • 10GBASE‐T – 10 Gigabit Ethernet |
| • 1000BASE‐T, 100BASE‐T, 10BASE‐T – Ethernet standards | |
| • 100VG-AnyLAN | |
| • 1.2 / 2.4 Gbps ATM | |
| • Digital & Analog Video Transmission | |
| • Power over Ethernet: IEEE 802.3af / 802.3at / 802.3bt | |
| Available Cable Colors | • Standard: Gray & Blue |
| • Other colors available upon customer request |
| Component | Specification |
| Conductor | Solid Bare Copper |
| Conductor Diameter | Nominal: 0.560 mm |
| Tolerance: +0.005 / –0.005 mm | |
| Insulation Material | Skin-Foam-Skin Polyethylene (PE) |
| Insulation Diameter | 1.330 ± 0.05 mm |
| Core Color Code | 1. White / Blue |
| 2. White / Orange | |
| 3. White / Green | |
| 4. White / Brown | |
| Inner Screening | • Aluminum Foil (PVC version) |
| • Al/Mylar Tape (LSZH version) | |
| Drain Wire (LSZH) | Tinned Copper, Ø 0.45 mm |
| Outer Screening | Tinned Copper Braid, Ø 0.10 mm |
| Braid Coverage | 30% |
| Sheath Thickness | 0.55 ± 0.05 mm (average) |
| External Cable Diameter | 7.5 ± 0.5 mm (LSZH) |
| Sheath Material | PVC or LSZH (RoHS Compliant) |
| Surface Finish | Clean |
| Rip-Cord | Yes |
| Standard Compliance | IEC 61156‐5 Edition 2.0 (Augmented Category 6A) |
| Category | Parameter | Specification |
| Electrical | Mutual Capacitance | < 5.6 nF / 100 m |
| Conductor Resistance | < 9.38 Ω / 100 m | |
| Conductor Loop Resistance | 19 Ω / 100 m | |
| Insulation Resistance | ≥ 5000 MΩ·km | |
| DC Resistance Unbalance | ≤ 2.0% | |
| Unbalanced-to-Ground Capacitance | ≤ 330 pF / 100 m | |
| Voltage Rating | Max. 72 V DC | |
| Spark Test | 2.5 kV DC | |
| Dielectric Strength | 2.5 kV DC for 2 seconds | |
| Nominal Velocity of Propagation (NVP) | 78% | |
| Propagation Delay | 536 ns / 100 m @ 500 MHz | |
| Delay Skew | ≤ 45 ns / 100 m | |
| Characteristic Impedance | 100 ± 15% Ω (1–250 MHz), 100 ± 22% Ω (250–500 MHz) | |
| Coupling Attenuation | ≥ 75 dB | |
| Transfer Impedance | ≤ 28 mΩ/m @ 10 MHz (Grade 2, IEC 61156) | |
| Mechanical | Min. Bending Radius (Installation) | ≥ 8 × Cable Diameter |
| Min. Bending Radius (Operation) | ≥ 4 × Outer Diameter | |
| Max. Pulling Force | ≤ 110 N | |
| Nominal Weight | 15.2 kg / 305 m | |
| Environmental | Operating Temperature | –20°C to +75°C |
| Storage Temperature | –20°C to +75°C | |
| Installation Temperature | –5°C to +60°C | |
| Sheath Properties | Material | PVC / LSZH (RoHS Compliant) |
| Before Aging – Tensile Strength | ≥ 13.5 MPa (PVC), ≥ 10.0 MPa (LSZH) | |
| Before Aging – Elongation | ≥ 150% (PVC), ≥ 125% (LSZH) | |
| Aging Period | 100°C × 24 h × 7 days | |
| After Aging – Tensile Strength | ≥ 12.5 MPa (PVC), ≥ 8.0 MPa (LSZH) | |
| After Aging – Elongation | ≥ 125% (PVC), ≥ 100% (LSZH) | |
| Cold Bend Test (–20 ± 2°C × 4 h × 8× O.D.) | No visible cracks | |
| Flame Performance | Flame Retardance | IEC 60332-1-1, IEC 60332-1-2 |
| Smoke Density | IEC 61034-1, IEC 61034-2 | |
| Halogen Acid Gas Emission | IEC 60754-2 | |
| Packing | — | Supplied in 305m box or drum (custom options available) |
| CC-C6A-SFTP-PV-305-GY | CAT6A, S/FTP, 4P, Horizontal Cable, 23 AWG, PVC, Gray, 305m Box |
| CC-C6A-SFTP-PV-305-BL | CAT6A, S/FTP, 4P, Horizontal Cable, 23 AWG, PVC, Blue, 305m Box |
| CC-C6A-SFTP-LZ-305-GY | CAT6A, S/FTP, 4P, Horizontal Cable, 23 AWG, LSZH, Gray, 305m Box |
| CC-C6A-SFTP-LZ-305-BL | CAT6A, S/FTP, 4P, Horizontal Cable, 23 AWG, LSZH, Blue, 305m Box |
