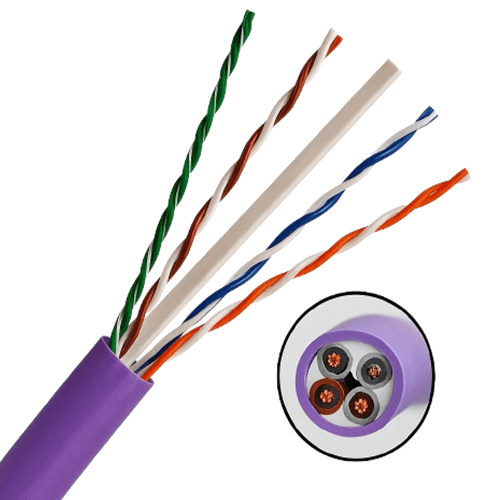

D-CONNECT Category 6A UTP LSZH Cable is engineered to deliver outstanding network performance, exceeding the stringent specifications of ANSI/TIA-568.2-D and ISO/IEC 11801 Class EA standards. Designed for high-speed data transmission up to 10 Gigabit Ethernet, this cable supports frequencies up to 500 MHz, making it ideal for bandwidth-intensive applications.
Manufactured with precision and tested rigorously, D-CONNECT Cat 6A cables are compliant with global performance benchmarks and certified by independent verification bodies including ETL and UL. The Low Smoke Zero Halogen (LSZH) jacket ensures enhanced fire safety, making it suitable for use in enclosed public and commercial spaces.
| Category | Details |
| Standards Compliance | TIA-568.2-D:2018 |
| ISO/IEC 11801-1, 11801-2, 11801-4 | |
| EN 50173-1 / EN 50173-2 | |
| EN 50288-10-1 | |
| IEC 61156-5 | |
| UL Subject 444 | |
| IEC 60332-1-1 / IEC 60332-1-2 (Flame Retardant) | |
| IEC 61034-1 / IEC 61034-2 (Smoke Emission) | |
| IEC 60754-2 (Acid Gas Emission) | |
| RoHS Compliant | |
| PoE Standards: IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++) | |
| Applications | 10GBASE‐T (10 Gigabit Ethernet) |
| 1000BASE‐T / 100BASE‐T / 10BASE‐T | |
| 100VG-AnyLAN, 1.2/2.4 Gbps ATM | |
| Digital and Analog Video Transmission | |
| IEEE 802.3af / 802.3at / 802.3bt Power over Ethernet (PoE, PoE+, PoE++) | |
| Cable Colors Available | Black, Gray, Blue, Violet (Standard) |
| Other colors available upon customer request |
| Component | Specification |
| Conductor | Material: Solid Bare Copper |
| Nominal O.D.: 0.570 mm (+0.005 / -0.005 mm) | |
| Insulation | Material: HDPE (High-Density Polyethylene) |
| Diameter: 1.03 ± 0.03 mm | |
| Core Colors: | |
| 1. White-Blue / Blue | |
| 2. White-Orange / Orange | |
| 3. White-Green / Green | |
| 4. White-Brown / Brown | |
| Sheath | Material: LSZH (Low Smoke Zero Halogen), RoHS Compliant |
| Thickness: 0.65 ± 0.05 mm (average) | |
| External O.D.: 6.9 ± 0.4 mm | |
| Surface Finish: Clean, Frap, Satiation | |
| Color: As per customer requirement | |
| Additional | Rip Cord: Yes |
| Drain Wire: Yes | |
| Standard | Construction complies with IEC 61156-5 Ed.2.0, Augmented Category 6A |
| Category | Parameter | Specification |
| Electrical | Mutual Capacitance | < 5.6 nF / 100 m |
| Unbalanced-to-Ground Capacitance | ≤ 330 pF / 100 m | |
| Insulation Resistance | ≥ 5000 MΩ·km | |
| Conductor Resistance | < 9.5 Ω / 100 m | |
| Conductor Loop Resistance | 19 Ω / 100 m | |
| DC Resistance Unbalance | ≤ 5.0% | |
| Voltage Rating | Max. 72 V DC | |
| Spark Test | 2.5 kV DC | |
| Dielectric Strength | 2.5 kV DC for 2 seconds | |
| Coupling Attenuation | ≥ 75 dB | |
| Transfer Impedance | ≤ 28 mΩ/m @ 10 MHz (Grade 2, IEC 61156) | |
| Nominal Velocity of Propagation (NVP) | 69% | |
| Characteristic Impedance | 100 ± 15% Ω (1–250 MHz), 100 ± 22% Ω (250–500 MHz) | |
| Propagation Delay | 535.6 ns / 100 m @ 500 MHz | |
| Delay Skew | ≤ 45 ns / 100 m | |
| Mechanical | Minimum Bending Radius (Installation) | ≥ 8 × Cable Diameter |
| Minimum Bending Radius (Operation) | ≥ 4 × Cable Diameter | |
| Maximum Pulling Force | ≤ 110 N | |
| Nominal Cable Weight | ~12 kg / 305 m | |
| Environmental | Operating Temperature | -20°C to +75°C |
| Storage Temperature | -20°C to +75°C | |
| Installation Temperature | -5°C to +60°C | |
| Sheath Properties | Before Aging – Tensile Strength | ≥ 10.0 MPa |
| Before Aging – Elongation | ≥ 125% | |
| Aging Period | 100°C × 24h × 7 days | |
| After Aging – Tensile Strength | ≥ 8.0 MPa | |
| After Aging – Elongation | ≥ 100% | |
| Cold Bend (-20±2°C × 4h × 8×Cable O.D.) | No visible cracks | |
| Fire Performance | Flame Retardance | IEC 60332-1-1, IEC 60332-1-2 |
| Smoke Density | IEC 61034-1, IEC 61034-2 | |
| Halogen Acid Gas Emission | IEC 60754-2 |
| CC-C6A-UUTP-PE-305-BK | Category6A Unshielded Twisted Pair (UTP)23AWG cable PEEXT(BLACK)-305MTR Box |
