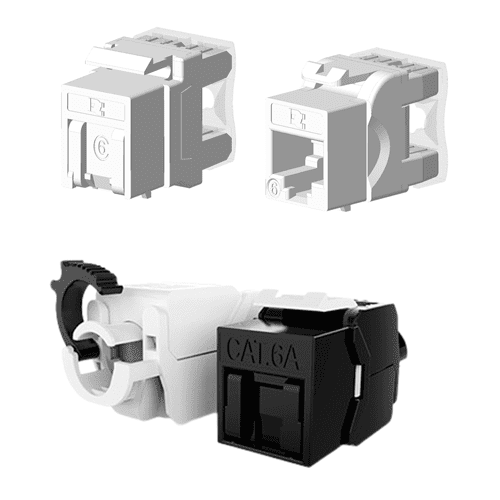

The D-Connect CAT6A UTP Keystone Jack delivers exceptional 10GBASE-T network performance, meeting and exceeding ANSI/TIA/EIA-568-C.2 and ISO/IEC 11801 Class EA standards up to 500 MHz. Its tool-free termination design ensures quick, cost-effective installation with a color-coded wire guide for accurate pair alignment. Compact and versatile, it fits standard faceplates, patch panels, and surface-mount boxes, supporting both T568A/B wiring schemes. Compatible with solid and stranded 22–26 AWG cables, it offers PoE+ support, robust strain relief, and UL 94V-0 fire-retardant housing, ensuring reliable, high-speed connectivity for enterprise and data center applications.
| ANSI/TIA/EIA-568-C.2 – Balanced Twisted-Pair Telecommunications Cabling and Components |
| Â |
| ISO/IEC 11801 – Generic Cabling for Customer Premises (Class EA) |
| Â |
| EN 50173-1 – Information Technology Cabling Systems |
| Â |
| IEC 60603-7-51 – Connectors for Electronic Equipment – Detail Specification for 8-way Connectors |
| Â |
| IEC 60512-99-001 – Test Procedures for Connector Performance |
| Â |
| PoE per IEEE 802.3af |
| Â |
| PoE+ per IEEE 802.3at |
| Â |
| RoHS Compliant – Restriction of Hazardous Substances |
| Component | Specification |
| RJ45 Jack Housing | Polycarbonate, UL 94V-0 fire-retardant |
| RJ45 Jack Contacts | Phosphor bronze with nickel plating; 50 micro-inch gold plating on plug contact area |
| IDC Housing | Polycarbonate (PC), UL 94V-0 |
| IDC Terminals | Phosphor bronze with tin plating |
| PCB | FR4, UL 94V-0, 1.2 mm thickness |
| Jack Bracket Set | ABS, UL 94V-0 |
| Plastic Parts | High-impact flame-retardant plastic, UL 94V-2 |
| IDC Cap | Polycarbonate (PC), UL 94V-0, white color |
| Standards Compliance | Jack openings comply with IEC 60603-7 and FCC 68.500 |
| Wiring Scheme | T568A & T568B |
| Contact Compatibility | Accommodates 26–23 AWG solid conductors |
| Cable OD Range | 5.0 mm – 8.5 mm |
| Category | Parameter | Specification |
| Electrical | Current Rating | 1.5 Amps |
|  | Insulation Resistance | ≥ 500 MΩ @ 500V DC |
|  | Contact Resistance | ≤ 200 mΩ |
|  | DC Resistance | ≤ 0.1 Ω |
| Â | DC/AC Voltage Endurance | DC 1000V / AC 700V for 1 min |
| Mechanical | Plug Insertion Life | ≥ 750 cycles with FCC-compliant RJ-45 plug |
|  | Plug & Jack Contact Force | ≥ 100 grams with FCC-compliant RJ-45 plug |
|  | Plug Retention Force | ≥ 11 lbf |
| Â | Retention Strength | 7.7 kg between jack and plug |
| Â | Durability | 200 termination cycles |
| Â | Insertion Force | < 30 N |
| Environmental | Operating Temperature | -10°C to 60°C |
| Â | Operating Humidity | 10% ~ 90% RH |
|  | Storage Temperature | -40°C to 70°C |
Â
| KJ-6A-46510101 | DCONNECT CAT6A UTP Keystone Jack, NT, 180° TOOLLESS , 568A+B, Unshutter, Ty51, White |
| KJ-6A-461104YY |  180° CAT6A UTP Keystone Jack, ET, 568A+B, Shutter, Ty11, YY |
| KJ-6A-465104YY |  180° CAT6A UTP Keystone Jack, ET, 568A+B, Unshutter, Ty51, YY |
