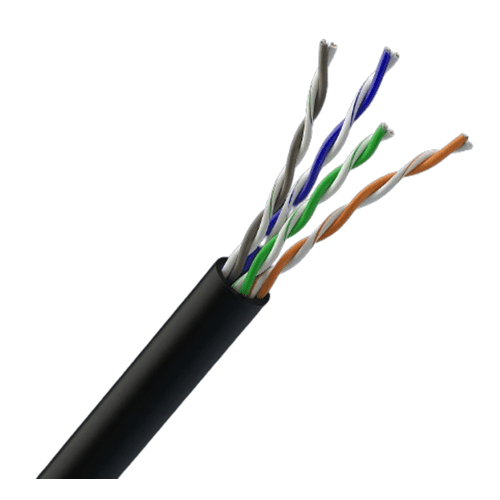

D-CONNECT Category 6A U/UTP PE External Cable is engineered to deliver reliable, standards-based performance for today’s high-speed network infrastructures. Designed for outdoor environments, this cable features a UV-resistant PE jacket and supports 10 Gigabit Ethernet (10GBASE-T) applications over distances up to 100 meters.
With robust construction and easy installation, the cable ensures optimum bandwidth for demanding data protocols — ideal for enterprise networks, CCTV backhaul, wireless access points, and industrial outdoor connections.
Standards & Compliance
ANSI/TIA-568-C.2 (Category 6)
ISO/IEC 11801 Class E
ISO/IEC 11801-4:2017 (Remote powering applications)
IEC 61156-5 (Balanced copper cabling)
EN 50173 (European structured cabling standard)
RoHS Compliant (Restriction of Hazardous Substances)
PoE & Power Support:
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (PoE++)
Cisco UPoE
Power over HDBaseT™ (PoH) up to 100 watts
Supports up to 160 cables in a bundle for 100W PoE applications
| Component | Specification |
| Conductor | Material: Solid Bare Copper |
| Nominal O.D.: 0.565 mm (+0.01 / -0.01 mm) | |
| Insulation | Material: PE (Polyethylene) |
| Diameter: 1.12 ± 0.1 mm | |
| Wrapping | Polyester tape isolation wrap |
| Sheath | Material: LDPE (Low-Density Polyethylene), RoHS Compliant |
| Thickness: 0.55 ± 0.05 mm | |
| External O.D.: 7.2 ± 0.5 mm | |
| Surface Finish: Clean, Frap, Satiation | |
| Color: Black | |
| Core Color Code | 1. White–Blue / Blue 2. White–Orange / Orange |
| 3. White–Green / Green 4. White–Brown / Brown | |
| Surface Printing | Letter Height: 3.0 ± 0.3 mm |
| Color: White | |
| Print Accuracy: ≤ ±0.5%, every 1m | |
| Operating Temperature Range | –20°C to +70°C |
| Packing | Wooden/Plastic Drum |
| Rip-Cord | Yes |
| Drain Wire | Not included |
| Sheath Physical Properties | Before Aging: |
| • Tensile Strength ≥ 10.0 MPa | |
| • Elongation ≥ 350% | |
| Aging Period: 100°C × 24 h × 10 days |
| Category | Parameter | Specification |
| Electrical | Impedance (Ω) | 100 ± 15 (1.0–250 MHz), 100 ± 22 (250–500 MHz) |
| Delay Skew (ns/100m) | ≤ 45 | |
| DC Resistance (Ω/100m) | ≤ 9.38 | |
| DC Resistance Unbalance (%) | ≤ 5.0 | |
| Mutual Capacitance | < 5.6 nF / 100 m | |
| Unbalanced-to-Ground Capacitance | ≤ 330 pF / 100 m | |
| Conductor Loop Resistance | 19 Ω / 100 m | |
| Insulation Resistance | ≥ 5000 MΩ·km | |
| Dielectric Strength | 2.5 kV DC for 2 seconds | |
| Spark Test | 2.5 kV DC | |
| Coupling Attenuation | ≥ 75 dB | |
| Transfer Impedance | ≤ 28 mΩ/m @ 10 MHz (IEC 61156-5 Grade 2) | |
| Nominal Velocity of Propagation (NVP) | 69% | |
| Voltage Rating | Max. 72 V DC | |
| Mechanical | Min. Bending Radius (Installation) | ≥ 8 × Cable Diameter |
| Min. Bending Radius (Operation) | ≥ 4 × Cable Diameter | |
| Pulling Force | ≤ 110 N | |
| Nominal Cable Weight | ~12 kg / 305 m | |
| Rip Cord | Yes | |
| Drain Wire | Not included | |
| Environmental | Operating Temperature | –20°C to +70°C |
| Storage Temperature | –20°C to +75°C | |
| Installation Temperature | –5°C to +60°C | |
| Sheath Properties | Material | LDPE (Low-Density Polyethylene), RoHS Compliant |
| Before Aging – Tensile Strength | ≥ 10.0 MPa | |
| Before Aging – Elongation | ≥ 350% | |
| Aging Period | 100°C × 24 h × 10 days | |
| Cold Bend Test (-20 ± 2°C, 4 h, 8 × Cable O.D.) | No visible cracks | |
| Flame Properties | Flame Retardance | IEC 60332-1-1, IEC 60332-1-2 |
| Smoke Density | IEC 61034-1, IEC 61034-2 | |
| Halogen Acid Gas Emission | IEC 60754-2 |
| CC-C6-UUTP-PE-305-BK | Category 6 Unshielded Twisted Pair (UTP) 23 AWG cable PE EXT(BLACK) – 305m box |
