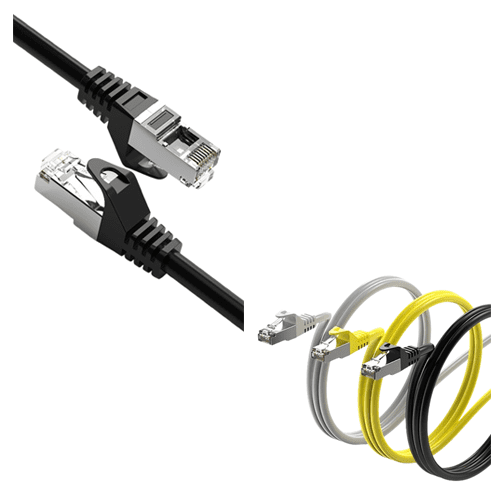

D-Connect CAT6A S/FTP Patch Cords are designed to meet or exceed all Category 6A performance requirements. Engineered for flexible and effective network connection management, they ensure reliable 500 MHz broadband transmission. Compatible with CAT6A keystone jacks and patch panels, these patch cords feature 26 AWG stranded conductors and premium gold-plated contacts for long-term performance and durability. Available with PVC or LSZH jackets for indoor installations.
| ISO/IEC 11801 Class EA (2nd Edition) |
| EN 50173-1:2011 |
| Â |
| ANSI/TIA-1096-A (formerly FCC Part 68) |
| Â |
| IEC 61156-6 (Patch Cable) |
| Â |
| Flame Retardancy: IEC 60332-1 |
| Â |
| Low Smoke: IEC 61034-2 |
| Â |
| Halogen Free: IEC 60754-1 & IEC 60754-2 |
| Â |
| Connector: IEC 60603-7 Compliant |
| Â |
| RoHS Compliant |
| Component | Specification |
| Conductor | Bare Copper, 26 AWG, 7/0.16 ± 0.08 mm |
| Insulation | Foamed PE, Nominal Thickness: 0.25 mm, Nominal Diameter: 1.05 ± 0.05 mm |
| Color Code | Blue / White-Blue, Orange / White-Orange, Green / White-Green, Brown / White-Brown |
| Elongation | Min. 400% |
| Tensile Strength (Insulation) | Min. 1.6 Kgf/mm² |
| Pair Construction | Two insulated conductors twisted together; four pairs cabled to form the basic unit |
| Shielding | AL/Mylar Tape (Overlap: 30%) |
| Braid | Al-Mg, 16/5/0.10 ± 0.008 mm, 45% coverage |
| Sheath Material | PVC or LSZH |
| Sheath Thickness | Nominal: 0.50 mm |
| Overall Diameter | 5.90 ± 0.10 mm |
| Tensile Strength (Sheath) | ≥ 50 N |
| Category | Parameter | Specification |
| Electrical | Dielectric Strength of Insulation | 2.5 KV DC / 2 seconds |
|  | DC Resistance | Max. 96 Ω/km @ 20°C |
|  | Insulation Resistance | Min. 5000 MΩ·km |
|  | Conductor Resistance | Max. 140 Ω/km @ 20°C |
| Â | Resistance Unbalance | Max. 2% |
| Â | Capacitance Unbalance | Max. 330 pF/100 m |
| Â | Mutual Capacitance | Max. 5600 pF/100 m |
| Â | Maximum Operating Voltage | 300 V |
| Â | Spark Test for Insulation (DC) | 2.50 KV |
|  | Characteristic Impedance | 100 ± 15% Ω up to 100 MHz |
| Â | Propagation Delay | 536 ns/100 m |
|  | Propagation Delay Skew | Max. 45 ns/100 m @ 1–500 MHz |
| Mechanical | Maximum Pulling Force | 80 N |
| Â | Minimum Bending Radius | 25 mm |
| Â | Nominal Weight | 34 kg/km |
|  | Insertion Life | ≥ 750 Mating Cycles |
| Environmental | Operating Temperature | -20°C ~ +75°C |
|  | Installation Temperature | 0°C ~ +50°C |
| Â | LSZH Requirement | RoHS, IEC 60332-1, IEC 61034-2, IEC 60754-1 & 2 |
| Â | PVC Requirement | RoHS, IEC 60332-1 |
| Â | Plug/Jack Compatibility | RJ45 |
| Â | Humidity | 10% ~ 90% RH |
| CPC-6A-261010GY | Patchcord FTP, category 6A, shielded plug, LSZH 1mtr Grey |
