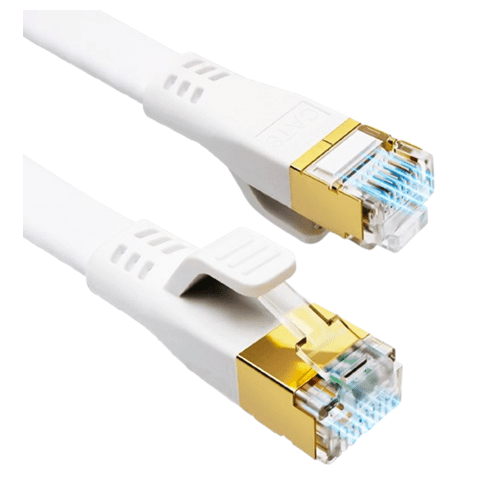

D-CONNECT Copper Patch Lead – CAT8 Shielded LSZH
High-performance CAT8 shielded patch lead supporting up to 2GHz bandwidth and 40Gbps data rates, meeting ANSI/TIA-568.2-D standards. Built with stranded copper conductors, S/FTP shielding, and Low Smoke Zero Halogen (LSZH) jacket for superior performance, safety, and flexibility. Features zinc alloy RJ45 connectors, 50µ” gold-plated contacts, and snag-less design, ensuring stable, interference-free connections in high-speed data centers, enterprise networks, and 5G-ready infrastructure. Available in multiple lengths and colors, FLUKE/3P certified for guaranteed quality.
| ANSI/TIA-568.2-D – Category 8 performance requirements |
| IEC 60603-7 – Modular connector standard |
| ISO/IEC 11801 – Generic cabling for customer premises |
| RoHS Compliant – Restriction of Hazardous Substances |
| REACH Compliant – Registration, Evaluation, Authorization & Restriction of Chemicals |
| UL 94V-0 – Flame-retardant rating for connector housing and PCB materials |
| FLUKE / 3P Certified – Verified performance through industry testing |
| FCC Part 68 Subpart F – Connector compliance for telecommunications equipment |
| Low Smoke Zero Halogen (LSZH) – Safety standard for reduced smoke and halogen emissions |
| Component | Specification |
| Connector Housing | Zinc alloy housing, PC UL 94V-2 transparent black |
| Metal Screw Cap | Ensures stable and reliable wire connection |
| IDC Terminal Base | Phosphor bronze contact teeth with nickel plating; 50µ” hard gold over 100µ” nickel |
| Ferrule | Full copper conductor, 50µ” gold-plated, corrosion-resistant, anti-aging |
| Shield | Copper with nickel plating |
| PCB | UL 94V-0 flame-retardant |
| Cable Type | CAT8 S/FTP (4 twisted pairs), stranded copper |
| Conductor | 24 AWG stranded copper wire |
| Shielding | Aluminum foil for each pair + tinned copper braid |
| Jacket | Low Smoke Zero Halogen (LSZH) |
| Strain Relief | PC UL 94V-2, Yellow (RAL 1021) |
| Color Options | Black, yellow, green, orange, or custom |
| Length Options | 0.5m – 10m (custom available) |
| Category | Parameter | Specification |
| Electrical | Bandwidth | Up to 2GHz (2000MHz) |
| Data Rate | Up to 40Gbps | |
| Performance Standard | ANSI/TIA-568.2-D, IEC 60603-7 | |
| Conductor Resistance | ≤ 0.1 Ω | |
| Contact Resistance | ≤ 20 mΩ | |
| Insulation Resistance | ≥ 500 MΩ | |
| Dielectric Strength | DC 1000V / AC 750V 1 min | |
| Wire Scheme | T568B on both ends | |
| Mechanical | Plug Test | 30N, IEC standard |
| Load Capacity | 50N, no break within 60s | |
| Bending Test | Pass 360° rotary and swag instant break test | |
| Mating Cycles | ≥ 750 cycles | |
| Cable Compatibility | 22–26 AWG, 5.0–9.0 mm OD | |
| Environmental | Operating Temperature | -40°C to +80°C |
| IP Rating | IP20 | |
| Jacket Material | LSZH (Low Smoke Zero Halogen) | |
| Certification | FLUKE/3P Certified |
| CPC-8-271010GY | CAT8 1 mtr shielded LSZH patch lead, 40Gbps, 2GHz, stranded copper, FLUKE certified, snag-less design. |
