The Elevator Traveling Cable 4 Core Fiber 2 Copper Wire Hybrid is a durable and flexible solution designed to deliver both power and data through a single cable in elevator systems. Built for constant movement, it ensures stable signal transmission, long service life, and reduced installation complexity. Ideal for low-voltage elevator applications requiring reliability, safety, and efficiency in bulk installations.

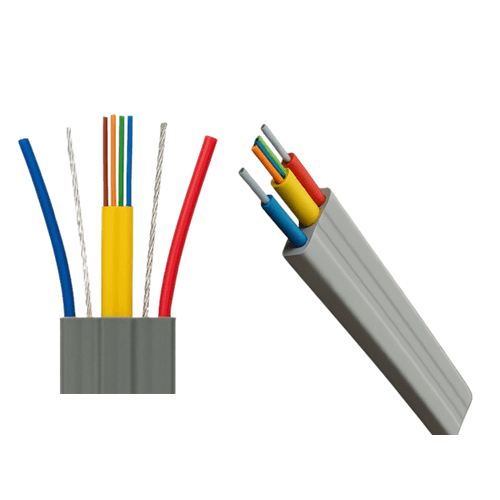

The D-connect Elevator Traveling Cable 4 Core Fiber 2 Copper Wire Hybrid is engineered to support modern elevator communication and monitoring needs by combining optical fiber and copper conductors in one robust cable. This hybrid design enables the transmission of data signals and DC power simultaneously, reducing the need for multiple cables and simplifying installation.
The cable uses 900μm tight-buffered optical fibers, offering excellent flexibility, mechanical protection, and superior bending resistance, which is critical for elevator traveling applications exposed to continuous motion. Two integrated copper wires act as load-bearing elements, ensuring strength during daily operation and unexpected tension during installation.
Designed for elevator traveling cable systems, this hybrid solution provides EMI-free signal transmission, stable performance, and high reliability between the lift car and motor room. Its corrosion-resistant, UV-resistant, and flame-retardant outer sheath makes it suitable for indoor, riser, plenum, and combined indoor/outdoor environments.
By replacing separate power and data cables, the hybrid elevator traveling cable reduces labor costs, installation time, and inventory requirements making it an ideal choice for bulk purchasing, OEMs, and large elevator projects.
The D-CONNECT Hybrid Copper-Fiber Elevator Travelling Optical Cable is manufactured and tested to meet the highest industry standards, ensuring safety, performance, and reliability for elevator communication systems.
Applicable Standards
IEC 60794 — Optical Fiber Cables: Design and testing standards for fiber optic cables
EN 50267 — Test on electric cables under fire conditions (flame retardant requirements)
ISO/IEC 11801 — Generic cabling for customer premises (for optical fibers and copper conductors)
EN 50306 — Elevator Travelling Cables: Construction and testing requirements for elevator cables
RoHS Compliant — Restriction of Hazardous Substances Directive ensuring environmental safety
REACH Compliant — Registration, Evaluation, Authorisation and Restriction of Chemicals
| Test Item | Test Standard | Test Conditions | Acceptance Criteria |
| Tensile Loading | IEC 60794-1-E1 | – Load: 1000 N | – Attenuation @1550nm ≤ 0.1 dB |
| – Duration: 1 min | – No fiber/jacket damage | ||
| Crush Resistance | IEC 60794-1-E3 | – Load: 1000 N/100 mm | – Attenuation @1550nm ≤ 0.1 dB |
| – Time: 1 min | – No fiber/jacket damage | ||
| – Repetition: 10 times | Â | ||
| Impact Resistance | IEC 60794-1-E4 | – Height: 1000 mm | – Attenuation @1550nm ≤ 0.1 dB |
| – Weight: 450 g | – No fiber/jacket damage | ||
| – Points: 5 | Â | ||
| – Frequency: 1/point | Â | ||
| Repeated Bending | IEC 60794-1-E6 | – Angle: ±90° | – Attenuation @1550nm ≤ 0.1 dB |
| – Weight: 1.5 kg | – No fiber/jacket damage | ||
| – Duration: 100 s | Â | ||
| – Relax: 10 s | Â | ||
| Torsion Test | IEC 60794-1-E7 | – Length: 4 m | – Attenuation @1550nm ≤ 0.1 dB |
| – Test Time: 10 min | – No fiber/jacket damage | ||
| – Relax: 10 s | Â | ||
| Water Penetration | IEC 60794-1-F5B | – Pressure Head: 1 m | – No water leakage at cable end |
| – Specimen Length: 3 m | |||
| – Duration: 24 hours | |||
| Temperature Cycling | IEC 60794-1-F1 | – Steps: +20°C → -20°C → +60°C → +20°C | – Attenuation @1550nm ≤ 0.1 dB |
| – 12 hours/step | – No fiber/jacket damage | ||
| – 2 full cycles | Â | ||
| Static bending |  | ≥ 10times than cable out diameter |  |
| Dynamic bending |  | ≥ 20times than cable out diameter. |  |
| Fiber Type | UNITS | SPECIFICATION | |
| Fiber Type | Â | G652D | |
| Attenuation | dB/km | 1310 nm≤ 0.34 | 1310 nm≤ 0.35 |
| 1550 nm≤ 0.21 | 1550 nm≤ 0.24 | ||
| Chromatic Dispersion | ps/nm.km | 1310 nm≤ 3.5  | |
| 1550 nm≤ 18  | |||
| 1625 nm≤ 22  | |||
| Zero Dispersion Slope | ps/nm2.km | 0.093 | |
| Zero Dispersion Wavelength | nm | 1300 ~ 1324 | |
| PMD (M=20, Q=0.01%) | ps/√km | ≤ 0.2 | |
| Cut-off Wavelength (cc) | nm | ≤ 1260 | |
| Attenuation vs. Bending | dB | ≤ 0.1 at 1625 nm | |
| (60mm x100turns) | (60mm x100turns) | ||
| Mode Field Diameter | µm | (8.6-9.5) ±0.7@1310nm | |
| Core-Clad Concentricity | µm | ≤ 0.5 | |
| Cladding Diameter | µm | 125±2 | |
| Cladding Non-circularity | % | ≤ 0.8 | |
| Coating Diameter | µm | 245±5 | |
| Proof Test | Gpa | ≥ 0.69 | |
The D-CONNECT Hybrid Copper-Fiber Elevator Travelling Optical Cable is ideal for a wide range of communication and power transmission needs in dynamic environments, including:
Elevator Systems: Reliable data and power transmission for elevator control, monitoring, and safety systems.
Building Automation: Integration with security cameras, sensors, access control, and communication devices in smart buildings.
Security & Surveillance: Power and data delivery to CCTV cameras, wireless access points, and alarm systems.
Low-Voltage Communication Networks: Ideal for phones, monitors, and other low-voltage equipment in commercial and residential buildings.
Indoor and Indoor/Outdoor Use: Suitable for plenum and riser installations, as well as protected outdoor environments such as elevator shafts and shafts with exposure to sunlight or moisture.
Industrial Applications: Robust enough for light industrial environments where flexibility and EMI immunity are required.
