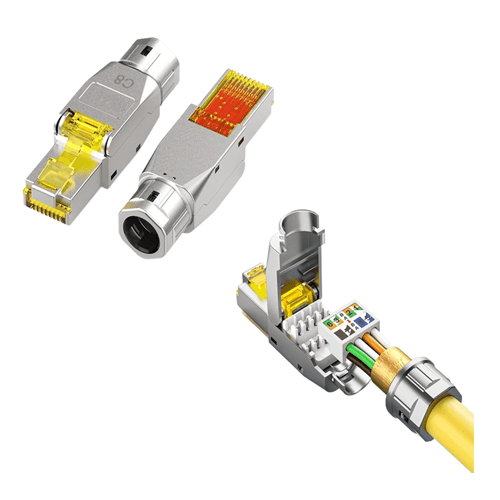

The D-CONNECT Industrial Grade Tool-less RJ45 Connector is engineered for high-performance, high-reliability network connections in demanding environments. It supports 10Gbps applications and 40G/2000MHz wide-band transmission, with a fully shielded zinc alloy housing for superior EMI protection. Tool-free termination ensures quick and secure installations, while environmentally friendly materials meet UL, REACH, and RoHS requirements. Designed for industrial, data center, and mission-critical applications.
| YD/T 926.3 – Telecommunications Industry Standard for Modular Connectors |
| IEC 60603-7 – International Standard for 8-way, 8-contact connectors |
| ANSI/TIA-568.2-D – Balanced Twisted-Pair Telecommunications Cabling and Components Standard |
| ISO/IEC 11801-1 – Generic Cabling for Customer Premises, Part 1: General Requirements |
| UL, REACH, RoHS – Environmental and safety compliance |
| Component / Parameter | Specification |
| Pins | Phosphor bronze, 50 μ″ gold plated |
| IDC Reed | Phosphor bronze, 200 μ″ tinned |
| Plastic Parts | ABS + PC, UL 94V-0 compliant |
| Housing | Zinc alloy, nickel plated |
| Plug Life | ≥ 1000 cycles |
| Wiring Life | ≥ 250 cycles |
| Operating Temperature | -10 °C ~ 60 °C |
| Storage Temperature | -40 °C ~ 60 °C |
| Relative Humidity | 10% ~ 90% |
| Wire Gauge | 22–26 AWG (solid/stranded) |
| Cable OD Compatibility | 5.0mm ~ 9.0mm |
| Dimension | 48mm × 12mm × 8mm (reference) |
| IP Rating | IP20 |
| Category | Parameter | Specification |
| Material | Pins | Phosphor bronze, 50 μ″ gold plated |
| IDC Reed | Phosphor bronze, 200 μ″ tinned | |
| Plastic Parts | ABS + PC, UL 94V-0 compliant | |
| Housing | Zinc alloy, nickel plated | |
| Mechanical | Plug Life | ≥ 1000 cycles |
| Wiring Life | ≥ 250 cycles | |
| Operating Temperature | -10 °C ~ 60 °C | |
| Storage Temperature | -40 °C ~ 60 °C | |
| Relative Humidity | 10% ~ 90% | |
| Wire Gauge | 22–26 AWG (solid/stranded) | |
| Cable OD Compatibility | 5.0mm ~ 9.0mm | |
| Dimension | 48mm × 12mm × 8mm (reference) | |
| IP Rating | IP20 | |
| Electrical | Insulation Resistance | ≥ 500 MΩ |
| Withstand Voltage | 1000 VAC | |
| DC Current | 1.5 A | |
| DC Resistance | ≤ 100 mΩ | |
| Contact Resistance | ≤ 20 mΩ |
| KJ-XX-485106YY | Industrial Grade Tool-less RJ Connector 360° Shielded | Tool-Free Termination | 10Gbps & 40G Support | 2000MHz Bandwidth |
