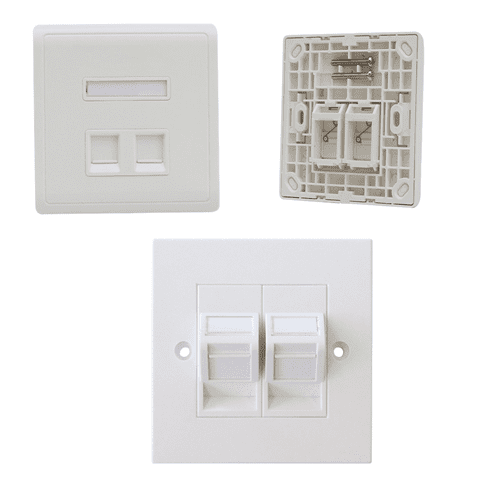

UK Bevel Style Faceplates with shuttered angled module, available pre-loaded with CAT6/CAT6A UTP or STP keystone jacks, or unloaded for flexible configuration. Compatible with all UK-style back boxes in single, double, or double gang (4-port) designs. Made from high-quality ABS with a smooth white finish and integrated dust cover for a professional look and reliable structured cabling performance.
| ANSI/TIA-568-C.2 – Balanced twisted-pair cabling components |
| Â |
| ISO/IEC 11801:2002/Amd.2:2010 – Generic cabling for customer premises |
| Â |
| YD/T 926.3-2009 – Telecommunications industry standard |
| Â |
| ISO/IEC 60603-7 – Modular connector standard |
| Â |
| RoHS Directive 2002/95/EC Compliant – Restriction of Hazardous Substances |
| Component | Specification |
| Cover Material | ABS |
| Base Material | ABS |
| Color | White |
| Dimensions | Single/Double: 86 × 86 mm, Double Gang: 86 × 147 mm |
| Compatibility | Fits UK standard back boxes |
| Finish | Smooth, gloss finish |
| Parameter | Specification |
| RJ45 Jack Life | Min. 750 insertions |
| IDC Life | Min. 250 terminations |
| Operating Temp. | -40°C to +70°C |
| Storage Temp. | -40°C to +70°C |
| Relative Humidity | 10% – 90% non-condensing |
| Flammability Rating | UL94V-0 |
| Compatibility | Fits standard UK back boxes |
| FPUK-11200101 | Single Port 86×86 Faceplate Unloaded – White |
| FPUK-11200201 | Double Port 86×86 Faceplate Unloaded-White |
| FPUK-11200401 | Double gang – 4 position 86x147mm Faceplate Unloaded-White |
