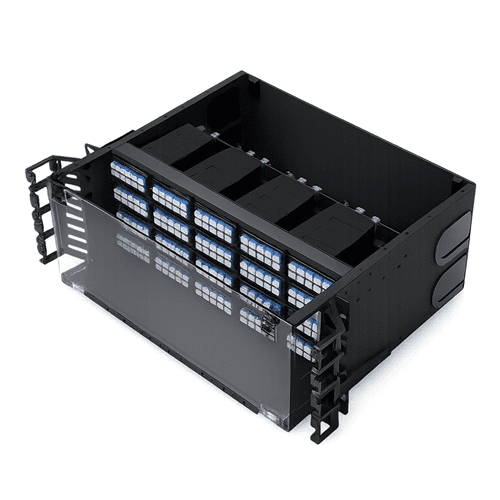

The D-CONNECT DC-FM16M4 High-Density Fiber Patch Panel is a 4U rack-mounted modular fiber distribution solution designed for MPO pre-terminated and fusion splicing applications. It supports up to 16 × 24F MPO cassette modules, providing a maximum capacity of 384 fibers.
Engineered for modern data centers, telecom networks, and enterprise infrastructure, this panel offers high scalability, efficient cable management, and reliable performance. Its modular design simplifies installation and maintenance while optimizing rack space utilization and reducing operational costs.
TIA-568-C.3 – Optical Fiber Cabling Components Standard
IEC 61754 Series – Fiber Optic Connector Interfaces
IEC 61753 Series – Performance Standards for Fiber Optic Devices
TIA/EIA-604 (FOCIS) – Fiber Optic Connector Intermateability Standards
ISO/IEC 11801 – Generic Cabling for Customer Premises
RoHS Compliance – Restriction of Hazardous Substances
CE Compliance – Conformity with European Safety Standards
| Design & Structure | Dimensions & Accessories |
| Mounting Type | 19-inch Rack Mount |
| Height | 4U |
| Dimension (W × D × H) | 482.6 × 430.4 × 177 mm |
| Adapter Type | LC / SC / FC / ST |
| Color | Black (RAL 9005) |
| Material | SPCC Steel |
| Surface Finish | Powder Coated |
| Compatibility | Supports up to 162 × 24F MPO cassette modules (Total 384 fibers) |
| Data Centers |
| Enterprise Networks |
| Telecom Networks |
| ISP Infrastructure |
| FTTH / FTTx Networks |
| High-Speed Optical Networks (10G / 25G / 40G / 100G) |
| MPO / MTP Backbone Systems |
| Scalable Fiber Distribution Systems |
| DC-FM16M4-XX | 4U High-Density Fiber Patch Panel Empty Panel (Supports 16 × 24F MPO Cassettes) Up to 384 Fibers |
| DC-FM16M4-16 | 4U High-Density Fiber Patch Panel Loaded Panel 16 × 24F MPO Cassettes Up to 384 Fibers |
