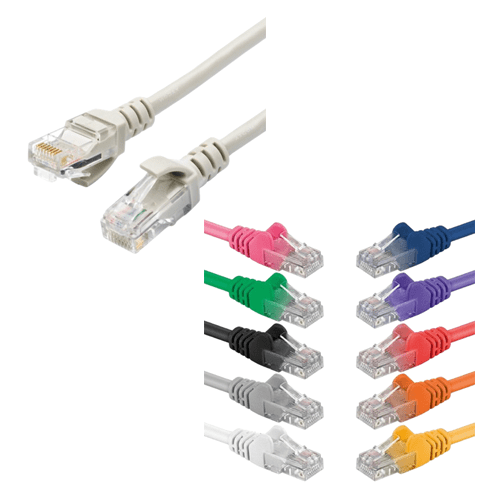

D-CONNECT CAT6A UTP Patch Cords are designed to meet or exceed all Category 6A (CAT6A) performance requirements, ensuring reliable broadband transmission up to 500 MHz. These flexible cords allow for effective management of network connections in high-performance environments.
Compatible with CAT6A keystone jacks and CAT6A patch panels, they deliver excellent electrical performance with superior attenuation, crosstalk continuity, and return loss under all patching conditions.
The cords are made from 24 AWG stranded copper conductors, with a PVC or LSZH jacket, four twisted pairs, and clear molded RJ45 connectors featuring ANSI/TIA-1096-A compliant 50-micron gold-plated contacts for corrosion resistance and long-term durability.
| ANSI/TIA/EIA 568.2-D — CAT6A |
| Â |
| ISO/IEC 11801 (2nd Edition) Class EA |
| EN 50173-1:2011 |
| ANSI/TIA-1096-A (formerly FCC Part 68) |
| UL 94-V2 compliant materials |
| Â |
| IEC 61156-6 for patch cable construction |
| Â |
| IEC 60332-1, IEC 61034-2, IEC 60754-1 & -2, IEC 60603-7 compliant |
| Â |
| Flame retardant performance verified to IEC 60332-1 |
| Â |
| PoE Standards — IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, PoE++ / 4PPoE compliant |
| Â |
| RoHS Compliant |
| Component | Specification |
| Conductor Material / Size | Bare Copper / 24 AWG |
| Conductor Construction | 7/0.20 ± 0.08 mm |
| Insulation Material | HDPE |
| Insulation Thickness | Nominal: 0.18 ± 0.02 mm |
| Insulation Diameter | Nominal: 0.98 ± 0.05 mm |
| Insulation Colors | Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown |
| Insulation Elongation | Min. 400% |
| Insulation Tensile Strength | Min. 1.6 Kgf/mm² |
| Pair Construction | Four pairs cabled together over a precision cross-shaped pair organizer |
| Cross Member Material | PE, 4.0 × 0.5 mm |
| Sheath Material | PVC or LSZH |
| Sheath Thickness | Nominal: 0.50 ± 0.05 mm |
| Overall Diameter | 6.0 ± 0.3 mm |
| Sheath Tensile Strength | ≥ 50 N |
| Category | Parameter | Specification |
| Electrical | Dielectric Strength of Insulation | 2.5 kV DC / 2 seconds |
|  | DC Resistance | ≤ 96 Ω/km @ 20°C |
|  | Insulation Resistance Test | ≥ 5000 MΩ·km |
|  | Conductor Resistance | 87.60 Ω/km @ 20°C |
|  | Resistance Unbalance | ≤ 2% |
|  | Capacitance Unbalance | ≤ 330 pF/100 m |
|  | Mutual Capacitance | ≤ 5600 pF/100 m |
| Â | Maximum Operating Voltage | 300 V |
| Â | Spark Test for Insulation (DC) | 2.50 kV |
|  | Characteristic Impedance | 100 ± 15% Ω up to 100 MHz |
| Â | Propagation Delay | 536 ns/100 m |
|  | Propagation Delay Skew | ≤ 45 ns/100 m @ 1–500 MHz |
| Mechanical | Maximum Pulling Force | 80 N |
| Â | Minimum Bending Radius | 25 mm |
| Â | Nominal Weight | 38 kg/km |
|  | Insertion Life | ≥ 750 mating cycles |
| Â | Plug/Jack Compatibility | RJ45 |
| Environmental | Operating Temperature | -20°C to +75°C |
|  | Installation Temperature | 0°C to +50°C |
|  | Humidity | 10% – 90% RH |
| Â | LSZH Requirement | RoHS, IEC 60332-1, IEC 61034-2, IEC 60754-1 & -2 |
| Â | PVC Requirement | RoHS, IEC 60332-1 |
| CPC-6A-251010GY | CAT6A UTP 4P RJ45 Patch Cord PVC – GREY – 1mtr – Component Level Tested |
| CPC-6A-252010GY | Patchcord UTP, category 6A, standard plug, LSZH 1mtr Grey |
