Fiber Optic Mini ODF (Splice Only, up to 288 Fiber Capacity)

The Fiber Optic Mini ODF (Splice Only, up to 288 Fiber Capacity) is the ultimate solution for high-capacity fiber splicing in telecom rooms, data centers, and FTTx network points. This compact and secure wall-mountable unit offers 288 fiber splices using 12 x 24-fiber splice trays. Designed for direct fusion splicing, it provides clean and efficient management for fiber installations. With multiple cable entry points, bend-radius protection, and tool-free access, it’s the ideal solution for scalable and high-density fiber networks in UAE and GCC regions.

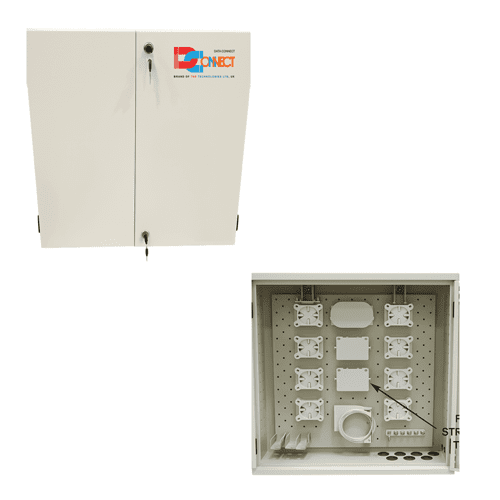

Fiber-Optic-Mini-ODF

Fiber Optic Mini ODF (Splice Only, up to 288 Fiber Capacity)

Part Number: FDC-2205288
FDC-2205288, 288 Fiber(Splice Capacity), with 12 Nos.of 24 Fiber Splice Trays (Big Tray),600mm High,,600mm Wide, 300mmDeep, Double Door, Type 2Knockouts, with,Lock, Grey(RAL 7035)
Key Features:
  • High Splice Capacity – Supports up to 288 fiber splices using 12 × 24-fiber big splice trays
  • Splice-Only Configuration – No adapters or patch panels; optimized for direct fusion splicing
  • Compact Wall-Mount Design – Space-saving enclosure ideal for telecom closets and indoor fiber hubs
  • Double Front Doors with Lock – Enhanced security and easy access to internal components
  • Tool-Free Tray Access – Simplified maintenance and fiber routing with swing-out splice trays
  • Multiple Cable Entry Points – Equipped with Type 2 knockouts for flexible routing and management
  • Durable Construction – Made from cold-rolled steel with corrosion-resistant RAL 7035 powder coating
  • Standard Dimensions – 600mm (H) × 600mm (W) × 300mm (D) for seamless integration into network environments
  • Protection for Fiber Joints – Ensures secure, organized, and bend-radius protected fiber splicing
  • Suitable for Various Applications – Central offices, indoor data centers, telecom nodes, and FTTx networks
Download Datasheet

The FDC-2205288 Fiber Optic Mini ODF is engineered to meet the demands of high-density fiber splicing in indoor environments, providing secure and organized fiber management. With 288 fiber splices supported by 12 x 24-fiber splice trays, this splicing-only ODF eliminates the need for patch panels or adapters, offering a simplified approach to fiber optic installations.

Constructed from cold-rolled steel and finished with a RAL 7035 light grey powder coating, the FDC-2205288 is designed for rugged durability in telecom rooms, data centers, and central offices. The lockable double front doors enhance security and provide easy access to internal components. The Type 2 knockouts provide flexible cable entry for seamless integration into existing fiber networks.

Engineered with tool-free access to splice trays, this mini ODF allows for quick and efficient maintenance and fiber routing in network environments where reliability and scalability are essential.

IEC 61753 / IEC 61300 – Performance standards for passive fiber components

TIA/EIA-568 – Telecommunications cabling standard

ISO/IEC 11801 – Structured cabling standard

RoHS Directive (2011/65/EU) – Hazardous substance restriction

REACH Regulation (EC) No. 1907/2006 – Chemical safety compliance

Factory Certifications:

ISO 9001:2015 (Quality Management)

ISO 14001:2015 (Environmental Management)

ParameterSpecification
Model No.FDC-2205288
FunctionSplice Only – No patching ports
Splice Capacity288 Fibers
Splice Trays Included12 pcs × 24-Fiber Big Splice Trays
MaterialCold-rolled Steel, Powder Coated
FinishRAL 7035 – Light Grey
DoorsDual Front Doors, Lockable
Cable Entry/ExitType 2 Knockouts
Locking MechanismIntegrated Cylinder Lock
Dimensions (HxWxD)600mm × 600mm × 300mm
MountingWall-Mountable
Central Office Fiber Termination
Data Center Fiber Splicing
FTTx Distribution Points
Indoor Telecom Cabinets & Rooms

Backbone or Access Network Nodes
FDC-2205072Fiber Optic Mini ODF SpliceOnly, 72 Fiber(Splice Capacity), with 3 Nos.of 24 Fiber Splice Trays (Big Tray),600mm High,,600mm Wide, 300mmDeep, Double Door, Type 2Knockouts, with,Lock, Grey(RAL 7035)
FDC-2205144Fiber Optic Mini ODF SpliceOnly, 144 Fiber(Splice Capacity), with 6 Nos.of 24 Fiber Splice Trays (Big Tray),600mm High,,600mm Wide, 300mmDeep, Double Door, Type 2Knockouts, with,Lock, Grey(RAL 7035)
FDC-2205288Fiber Optic Mini ODF SpliceOnly, 288 Fiber(Splice Capacity), with 12 Nos.of 24 Fiber Splice Trays (Big Tray),600mm High,,600mm Wide, 300mmDeep, Double Door, Type 2Knockouts, with,Lock, Grey(RAL 7035)
