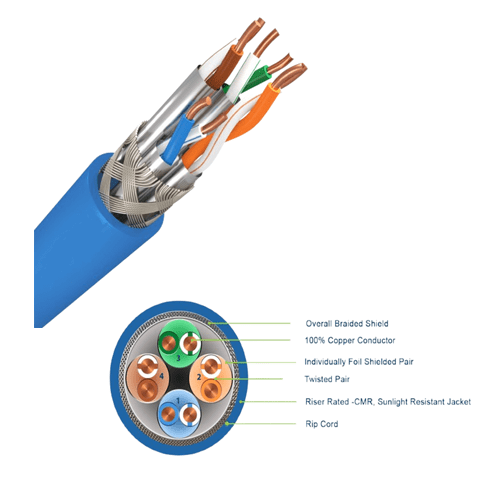

The DCONNECT Horizontal CAT8.1 S/FTP Cable is a premium-grade, high-frequency network cable engineered for ultra-high-speed data transmission in data centers and enterprise networks. Designed with individually foil-shielded twisted pairs and an overall braided shield, it delivers exceptional protection against EMI and crosstalk.
Built with 23 AWG solid bare copper conductors and a Low Smoke Zero Halogen (LSZH) sheath, this cable supports bandwidths up to 2000 MHz and data rates up to 40Gbps over short distances. It meets or exceeds ISO/IEC 11801 and ANSI/TIA-568-C.2 Category 8.1 performance standards, ensuring reliable, high-speed performance in demanding environments.
Ideal for 25G/40GBASE-T applications, the cable is fire-rated to IEC 60332-1-2 and designed for use in high-density, safety-critical installations.
| ✅ Performance Standards |
| ISO/IEC 11801 Class I – Structured cabling standard for Cat 8 applications |
| ANSI/TIA-568.2-D – Balanced twisted-pair cabling and components standard |
| IEC 61156-5 – Transmission performance for 4-pair cables |
| EN 50173 / EN 50288 – European standards for IT cabling systems |
| ✅ Fire & Safety Compliance |
| IEC 60332-1-2 – Flame propagation test for single insulated wires and cables |
| LSZH (Low Smoke Zero Halogen) – Ensures reduced smoke and zero halogen emission in case of fire |
| ✅ Electrical & Transmission |
| Tested to 2000 MHz bandwidth and 40 Gbps data rate |
| Certified for use in Class I (Category 8.1) environments |
| Element | Specification |
| Cable Type | S/FTP – Shielded Foiled Twisted Pair |
| Category | CAT8.1 (Class I), 4 Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Diameter | 0.620 ± 0.01 mm (AWG23) |
| Insulation Material | Skin-Foam-Skin Polyethylene (PE) |
| Insulation Diameter | 1.580 ± 0.05 mm |
| Pair Shielding | Aluminum Foil (Al/Mylar) individually shielded pairs |
| Drain Wire | Tinned Copper, 0.4 mm |
| Overall Shielding | Aluminum-Magnesium Alloy Braid |
| Shield Coverage | ≥ 40% |
| Sheath Material | LSZH (Low Smoke Zero Halogen), RoHS Compliant |
| Sheath Thickness | 0.55 ± 0.05 mm |
| Outer Cable Diameter | 8.4 ± 0.5 mm |
| Surface Printing | Black, 3.0 ± 0.3 mm height, ≤ ±0.5%/m |
| Core Color Coding | 1: White/Blue, 2: White/Orange, 3: White/Green, 4: White/Brown |
| Rip Cord | Yes |
| Packing Options | 30 ± 0.3 m / 50 ± 0.3 m / 100 ± 0.5 m lengths |
| Packaging | Drum or Wooden Tray (as required) |
| Category | Parameter | Specification |
| Electrical | Impedance (@100 MHz) | 100 ±5 Ω |
| Delay Skew | ≤ 25 ns / 100 m | |
| Velocity of Propagation | 78% | |
| Capacitance (Unbalanced-to-Ground) | ≤ 120 pF / 100 m | |
| DC Resistance | ≤ 6.98 Ω / 100 m | |
| DC Resistance Unbalance | ≤ 2.0% | |
| Mechanical | Conductor Diameter | 0.620 ±0.01 mm |
| Insulation Diameter | 1.580 ±0.05 mm | |
| Overall Cable Diameter | 8.4 ±0.5 mm | |
| Minimum Bending Radius | ≥ 8 × Cable O.D. | |
| Environmental | Sheath Material | LSZH, RoHS Compliant |
| Sheath Thickness | 0.55 ±0.05 mm | |
| Tensile Strength (Before/After Aging) | ≥10.0 / ≥8.0 MPa | |
| Elongation (Before/After Aging) | ≥125% / ≥100% | |
| Cold Bend Test | -20 ±2°C × 4h @ 8×O.D., No visible cracks | |
| Flame | Flame Rating | IEC 60332-1-2 |
| CC-C8A-S/FTP-LZ-305-GY | CAT8 S/FTP Ethernet Cable, 40Gbps, 2000MHz, LSZH Sheath, Solid Copper 305 MTR BOX |
