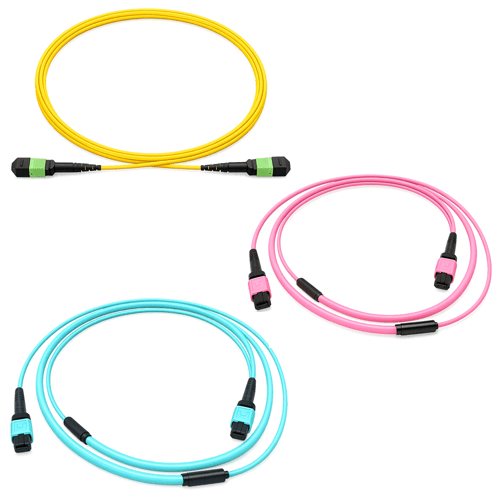

The DCONNECT MPO to MPO Fiber Patch Cord is a high-density fiber optic connectivity solution designed for data centers, telecom networks, and high-speed backbone infrastructures. Supporting Singlemode and Multimode applications, it delivers low insertion loss, fast deployment, and reliable performance for 40G, 100G, and 400G network environments.
Server Infrastructure
Network Deployment
Business Systems
Surveillance Networks
The DCONNECT MPO to MPO Fiber Patch Cord is a premium high-density fiber optic cable designed to simplify and optimize modern data center and high-speed network deployments. Utilizing MPO/MTP multi-fiber connectivity technology, the patch cord enables multiple fiber channels to be connected through a single compact interface, significantly reducing cable congestion and installation complexity. Available in various fiber counts and supporting both Singlemode and Multimode applications, it provides flexible connectivity options for enterprise networks, telecom infrastructures, cloud environments, and hyperscale data centers. Factory-terminated and fully tested before shipment, the patch cord ensures consistent optical performance, low insertion loss, and rapid plug-and-play installation. Its compact cable design improves airflow, cable management, and rack utilization while supporting the increasing bandwidth demands of 10G, 40G, 100G, and 400G network architectures.
The DCONNECT MPO to MPO Fiber Patch Cord combines high-density connectivity, low-loss optical performance, and flexible deployment options for modern fiber network infrastructures. Available in multiple fiber counts including 8, 12, and 24 core configurations, it supports OS2 Singlemode and OM3, OM4, and OM5 Multimode fiber applications. Factory pre-terminated MPO connectors simplify installation while reducing deployment time and minimizing field termination errors. Low insertion loss performance ensures reliable signal transmission for high-speed data applications, while Type A, Type B, and Type C polarity options provide compatibility with diverse network architectures. The compact cable construction improves cable routing efficiency and reduces rack congestion in high-density environments. Available with LSZH, OFNR, and OFNP jacket options, the patch cord supports a wide range of installation requirements while maintaining excellent mechanical durability and long-term network reliability.
The DCONNECT MPO to MPO Fiber Patch Cord is engineered to provide scalable and efficient optical connectivity for high-bandwidth network infrastructures. Designed for modern data centers, enterprise backbones, telecom networks, and cloud computing environments, this high-density fiber solution allows multiple optical fibers to be consolidated into a single MPO/MTP connector interface. The result is simplified cable management, faster deployment, and improved space utilization within network racks and cabinets. Available in a variety of fiber counts and supporting both Singlemode and Multimode technologies, the patch cord accommodates evolving network requirements while maintaining exceptional optical performance. Low insertion loss and high return loss characteristics help ensure stable signal transmission across mission-critical applications including 40G, 100G, and 400G Ethernet networks. Factory-tested connectors guarantee consistent quality and performance, while flexible polarity options simplify network design and implementation. With multiple jacket options and robust construction, the DCONNECT MPO to MPO Fiber Patch Cord delivers a future-ready fiber connectivity solution for demanding network environments requiring high density, reliability, and scalability.
| Product Type | MPO to MPO Fiber Patch Cord |
|---|---|
| Connector Type | MPO / MTP |
| Part Number | DC–MPO–[Fiber Count]–[Fiber Type]–[Polarity]–[Length]–[Jacket] |
| End Face Type | PC / APC |
| Fiber Type Support | OS2, OM3, OM4, OM5 |
| Singlemode Fiber Standards | G652, G655, G657 |
| MPO Fiber Counts | 4F, 8F, 12F, 16F, 24F, 32F, 48F |
| MTP Fiber Counts | 8F, 12F, 16F, 24F, 32F, 48F, 72F |
| Cable Diameter | 3.0 mm Mini Round Cable |
| Standard Insertion Loss | ≤ 0.35 dB Typical / ≤ 0.70 dB Maximum |
| Low Loss Insertion Loss | ≤ 0.20 dB Typical / ≤ 0.35 dB Maximum |
| Return Loss SM APC | ≥ 60 dB |
| Return Loss MM PC | ≥ 20 dB |
| Test Wavelength SM | 1310 / 1550 nm |
| Test Wavelength MM | 850 / 1300 nm |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB |
| Interchangeability | ≤ 0.2 dB |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Outer Jacket Material | LSZH / OFNR / OFNP |
| Static Bend Radius | 10D |
| Dynamic Bend Radius | 20D |
| Polarity Options | Type A / Type B / Type C |
| Standards Compliance | TIA-568-C.3, IEC 61754, ISO/IEC 11801 |
