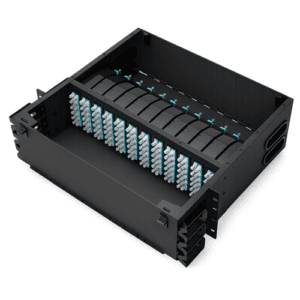

The DConnect 4U High-Density Fiber Patch Panel is a modular 19-inch rack-mounted fiber management solution supporting up to 16 × 24F MPO cassettes (384 fibers). Designed for MPO/MTP backbone networks, data centers, telecom, and enterprise fiber infrastructure, it delivers maximum fiber density, efficient cable management, and simplified installation.
Server Infrastructure
Network Deployment
Business Systems
Surveillance Networks
The DConnect 4U High-Density Fiber Patch Panel is engineered for high-capacity fiber optic network deployments requiring maximum density, scalability, and efficient cable management. Designed to accommodate up to 16 MPO cassette modules with a total capacity of 384 fibers, this modular 4U enclosure provides a compact and organized solution for modern data centers, telecom networks, enterprise infrastructures, and high-speed optical backbone systems. Supporting both MPO/MTP pre-terminated solutions and fusion splicing applications, the panel simplifies installation while improving network flexibility. Manufactured from premium SPCC steel with a durable powder-coated finish, it delivers outstanding mechanical strength, long-term reliability, and professional fiber management for mission-critical optical networks.
The DConnect 4U High-Density Fiber Patch Panel delivers exceptional fiber management for large-scale network infrastructures by supporting up to 16 × 24F MPO cassette modules with a maximum capacity of 384 fibers. Its modular architecture enables flexible deployment for MPO/MTP backbone systems, adapter plate installations, and fusion splicing applications while simplifying future network expansion. The standard 19-inch rack-mounted design maximizes rack utilization without compromising accessibility, and the optimized fiber routing system maintains proper bend radius protection for improved network reliability. Constructed from premium SPCC steel with a corrosion-resistant powder-coated finish, the enclosure provides long-term durability in demanding environments. Compatible with LC, SC, FC, and ST adapter panels, the patch panel is an ideal solution for data centers, enterprise networks, ISP infrastructures, FTTH deployments, and high-speed optical communication systems supporting 10G, 25G, 40G, 100G, and future network technologies.
The DConnect 4U High-Density Fiber Patch Panel is a professional modular fiber distribution enclosure developed for organizations requiring high-capacity optical connectivity within limited rack space. Supporting up to 16 MPO cassette modules with a total fiber capacity of 384 fibers, the panel enables efficient deployment of MPO/MTP backbone infrastructures, adapter-based connectivity, and fiber splicing applications. Its modular design allows simple installation, maintenance, and future scalability while minimizing deployment time and operational costs. The enclosure supports LC, SC, FC, and ST adapter configurations, providing excellent compatibility across a wide range of fiber optic network architectures. Manufactured from high-quality SPCC steel and finished with a durable powder coating, the panel delivers excellent structural strength and long-term protection against wear and corrosion. The integrated fiber management system ensures organized cable routing and proper bend radius control, reducing signal loss and improving network performance. Ideal for hyperscale data centers, telecommunications facilities, enterprise campuses, ISP backbone networks, and FTTH infrastructures, the DConnect 4U High-Density Fiber Patch Panel provides a reliable, scalable, and future-ready solution for modern optical communication systems.
| Product Name | 4U High-Density Fiber Patch Panel |
|---|---|
| Brand | DConnect |
| Part Number | DC-FM16M4-XX |
| Form Factor | 4U |
| Mounting Type | Standard 19-Inch Rack Mount |
| Maximum Fiber Capacity | 384 Fibers |
| MPO Cassette Capacity | Up to 16 × 24F MPO Cassettes |
| Compatible Connector Types | MPO, MTP, LC, SC, FC, ST |
| Application Support | MPO Pre-Terminated & Fusion Splicing |
| Rack Width | 482.6 mm |
| Depth | 430.4 mm |
| Height | 177 mm |
| Material | SPCC Steel |
| Surface Finish | Black Powder Coating (RAL 9005) |
| Fiber Management | Integrated Cable Routing System |
| Cable Protection | Bend Radius Protection |
| Modular Design | Yes |
| Installation Type | Rack Mounted |
| Expansion Support | High-Density Modular Design |
| Operating Environment | Indoor |
| Color | Black |
| Standards Compliance | TIA, IEC, ISO/IEC |
| RoHS Compliant | Yes |
| CE Certified | Yes |
| Compatible Networks | 10G, 25G, 40G, 100G |
Contact us for details and support.
