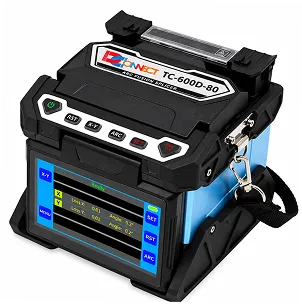

DCONNECT TC-600D-80 80-125µm Small Core Fusion Splicer

The DCONNECT TC-600D-80 80-125µm Small Core Fusion Splicer is a professional fiber optic splicing machine designed for 80-125µm small-core optical fibers. Featuring six-motor core alignment, patented dual V-groove technology, automatic fiber recognition, 6-second fast splicing, and a 5400mAh high-capacity battery, it provides precise, stable, and reliable fusion splicing performance for telecom, FTTx, FTTH, and professional fiber optic applications.

Datacenter

Server Infrastructure

Telecom

Network Deployment

Enterprise IT

Business Systems

Security Systems

Surveillance Networks

Global Brand

55+ Countries

Worldwide Shipping

Fast Global Delivery

Bulk Supply

Wholesale Solutions

Own Manufacturing

Quality Assured

24/7 Support

Always Available

Overview

Key Features

Applications

Technical Specifications

Downloads

FAQs

Shipping & Warranty

Product Overview

The DCONNECT TC-600D-80 80-125µm Small Core Fusion Splicer is a high-performance fiber optic splicing solution designed for professional networks requiring accurate small-core fiber alignment and reliable splice quality. Its six-motor core alignment system provides precise fiber positioning, while the patented dual V-groove design improves alignment stability and makes the splicing process more efficient. The TC-600D-80 supports 80-80, 125-125, and 80-125 splicing configurations and accommodates SM, MM, DS, NZ/NZDS, BI, G654, and G654E fiber types. It supports fiber cladding diameters from 80-150µm and coating diameters from 100-1000µm, with a fastest splicing time of 6 seconds and heating time of 12 seconds. Its high-resolution touch screen, 130X dual-view inspection, 300X single-axis magnification, high-precision loss estimation, automatic splice data storage, and 5400mAh battery provide efficient operation for telecom, FTTx, FTTH, fiber optic installation, maintenance, and other professional optical network applications.

Key Features

The DCONNECT TC-600D-80 features six-motor fiber core alignment and patented dual V-groove technology for precise fiber positioning and stable fusion splicing. It supports 80-80, 125-125, and 80-125 fiber splicing modes, with a 6-second fastest splicing time and 12-second heating time. The fusion splicer provides 100 splice modes and 30 heating modes with customizable parameters, automatic fiber recognition, high-precision loss estimation, and a removable multifunctional fiber holder compatible with bare fiber, drop cable, jumper, patch cord, and pigtail applications. It also features a 4.3-inch 800 × 480 high-resolution touch screen, 130X dual-view inspection, up to 300X single-axis magnification, automatic storage for up to 800 splice images and 20,000 splice results, MicroSD and high-speed USB connectivity, typical 3000-splice electrode life, and a 5400mAh high-capacity battery supporting more than 300 continuous splicing and heating operations.

Available in

Dubai - UAE

Warehouse, Office & Showroom

Sharjah - UAE

Warehouse

Product Description

The DCONNECT TC-600D-80 80-125µm Small Core Fusion Splicer is designed for accurate and efficient fusion splicing of optical fibers with 80-125µm cladding diameters. Its six-motor fiber core alignment system provides precise fiber positioning and stable splice performance, while the patented dual V-groove technology improves alignment accuracy. The machine supports 80-80, 125-125, and 80-125 splicing modes and is compatible with SM, MM, DS, NZ/NZDS, BI, G654, and G654E optical fibers. Its removable multifunctional fiber holder supports bare fiber, drop cable, jumper, patch cord, and pigtail applications. With a fastest splicing time of 6 seconds, 12-second heating, high-precision loss estimation, a 4.3-inch high-resolution touch screen, up to 300X magnification, and a 5400mAh battery supporting more than 300 continuous splicing and heating cycles, the TC-600D-80 is suitable for professional fiber optic installation and maintenance.

Applications

Data Center

Server Rooms

Telecom Facilities

Network Infrastructure

Security & Surveillance Systems

Government

Banking

Healthcare

Education

Technical Specifications

D-CONNECT TC-600D-80 80-125µm small core fusion splicer	Size
133x144x133(mm)	Fiber Alignment
6 motor core alignment	Fiber Type
Single fiber	Fiber Holder
Removable multifunctional fiber holder, compatible with all types of optical fibers such as bare fiber, drop cable, jumper/patch cord, pigtail etc	Applicable Fiber
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657), G654, G654E	Fiber Clading Diameter
80-150 (μm)	Fiber Coating Diameter
100-1000 (μm)	Cleave Length
The diameter of the coating is below 250μm：6-16 mm; The diameter of the coating is over 250μm：16 mm	Splice Mode
Total 100 modes, support self-defined modes and parameters	Splicing Time
6s (Fastest mode)	Heating Mode
Total 30 modes, support self-defined modes and parameters	Heating Time
12s (Fastest mode)	Application Protection Sleeve
10-60mm	Splice Image Storage
Max. 800 (Automatic Loop Storage)	Splice Result Storage
Max. 20000 (Automatic Loop Storage)	Average Splicing Loss
SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI 0.02dB ( ITU-T standard)	Return Loss
＞60dB	Loss Estimation Mode
High precision loss estimation	Fiber Tensile Test Force
2N	Display
4.3 inch 800x480 pixels high resolution display, with touch screen	Visual System
X and Y dual view display 130 times on the same screen; X or Y single view independent display at 300x magnification	Connection Port
MicroSD and high speed USB port	Electrodes Life
Typical 3000 splices	Power Supply
AC100-240V, 50/60Hz	Battery
5400mAh high-capacity battery, supporting continuous splicing and heating for more than 300 times; Standard charging time of 3 hours (2 hours to charge to 80%)	Operation & Storage Condition

Downloads

PRODUCT CATALOGUE

PRODUCT DATASHEET

CERTIFICATIONS

Frequently Asked Questions

1. What fiber types does the DCONNECT TC-600D-80 support?

It supports SM, MM, DS, NZ/NZDS, BI, G654, and G654E optical fibers.

2. What fiber splicing configurations does the TC-600D-80 support?

It supports 80-80, 125-125, and 80-125 fiber splicing configurations.

3. How fast can the TC-600D-80 perform splicing?

It provides a fastest splicing time of 6 seconds with 12-second heating.

4. How many splice and heating modes are available?

It offers 100 splice modes and 30 heating modes with customizable parameters.

5. How much splice data can the TC-600D-80 store?

It can automatically store up to 20,000 splice results and 800 splice images.

6. Where can the TC-600D-80 be used?

It is suitable for telecom, FTTx, FTTH, fiber optic installation, maintenance, and professional optical networks.
