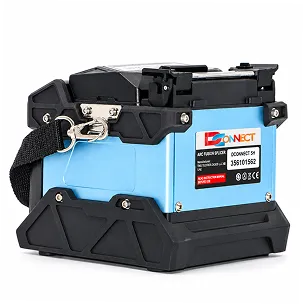

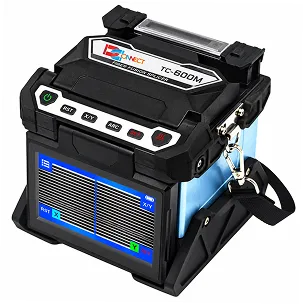

| Product Name | D-CONNECT TC-600M ribbon fusion splicer |
|---|
| Size | 133x144x133(mm) |
|---|
| Fiber Type | Single fiber & 2 to 12 cores ribbon fiber |
|---|
| Fiber Holder | Standard kit with 8 cores and 12 cores fiber holder, 1/2/4/6 cores fiber holder is option |
|---|
| Fiber Alignment | High-precision cladding alignment |
|---|
| Applicable Fiber | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657) |
|---|
| Fiber Diameter | Cladding diameter: 125 (μm), Coating(single) diameter: 160μm-3mm, ribbon 250μm-400μm |
|---|
| Cleave Length | 250μm coating diameter 9-9.5mm |
|---|
| Splice Mode | Total 100 modes, support self-defined modes and parameters |
|---|
| Splicing Time | 16s (SM Fast) |
|---|
| Heating Mode | Total 20 modes, support self-defined modes and parameters |
|---|
| Heating Time | 35s |
|---|
| Application Protection Sleeve | 25-60mm |
|---|
| Splice Image Storage | Max. 800 (Automatic Loop Storage) |
|---|
| Splice Result Storage | Max. 10000 (Automatic Loop Storage) |
|---|
| Average Splicing Loss | SM: 0.05dB, MM: 0.03dB, DS: 0.08dB, NZ/NZDS: 0.08dB, BI 0.05dB (ITU-T standard) |
|---|
| Return Loss | ＞60dB |
|---|
| Fiber Tensile Test Force | 2N |
|---|
| Display | 4.3 inch 800×480 pixels high resolution display, with touch screen |
|---|
| Visual System | X and Y dual view display on the same screen; X or Y single view independent display at 24x magnification |
|---|
| Connection Port | MicroSD and high speed USB port |
|---|
| Electrodes Life | Typical 2000 splices |
|---|
| Power Supply | AC100-240V, 50/60Hz |
|---|
| Battery | 5400mAh high-capacity battery, supporting continuous splicing and heating for more than 120 times; Standard charging time of 4 hours (3 hours to charge to 80%) |
|---|
| Operation Condition | Altitude: 0-3800m, Temperature: -20 to 50℃, Humidity: 0-95%RH, Max. wind 15m/sec |
|---|
| Storage Condition | Temperature: -40 to 80℃ (Battery: -10 to 40℃), Humidity: 0-95%RH |
|---|
