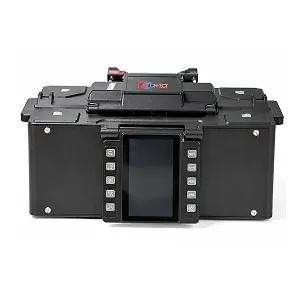

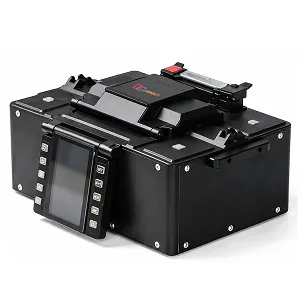

DCONNECT LDF-6000D-400 200-400µm Big Core Fusion Splicer

DCONNECT LDF-6000D-400 200-400µm Big Core Fusion Splicer

The DCONNECT LDF-6000D-400 200-400µm Big Core Fusion Splicer is a professional fiber optic splicing machine designed for 200-400µm large-core optical fibers. With six-motor core alignment, dual V-groove technology, fast 18-second splicing, and an 8400mAh high-capacity battery, it provides precise and reliable fusion splicing performance for specialty fiber, telecom, industrial, and network applications.

Datacenter

Server Infrastructure

Telecom

Network Deployment

Enterprise IT

Business Systems

Security Systems

Surveillance Networks

Global Brand

55+ Countries

Worldwide Shipping

Fast Global Delivery

Bulk Supply

Wholesale Solutions

Own Manufacturing

Quality Assured

24/7 Support

Always Available

Overview

Key Features

Applications

Technical Specifications

Downloads

FAQs

Shipping & Warranty

Product Overview

The DCONNECT LDF-6000D-400 200-400µm Big Core Fusion Splicer is engineered for precise and reliable fusion splicing of large-core and specialty optical fibers. Its six-motor alignment system and dual V-groove technology provide accurate fiber alignment and consistent splicing performance, while its wide fiber compatibility makes it suitable for different large-core fiber applications. With fast 18-second splicing for 400µm fiber, high-precision loss estimation, a high-resolution display, automatic splice image and result storage, and a high-capacity 8400mAh battery, the LDF-6000D-400 provides efficient operation for professional fiber optic installation and maintenance.

Key Features

The DCONNECT LDF-6000D-400 features six-motor fiber core alignment and patented dual V-groove technology for accurate and stable large-core fiber positioning. It supports 200-400µm fiber cladding diameters and provides an 18-second fastest splicing time for 400µm optical fiber. The fusion splicer supports multiple fiber types and coating diameters, with flexible fusion and heating modes for different fiber specifications. It also provides high-precision loss estimation, a 4.3-inch 800 × 480 high-resolution display, X and Y dual-view fiber inspection, automatic storage for up to 800 splice images and 20,000 splice results, and an 8400mAh battery supporting more than 320 continuous splicing and heating operations.

Available in

Dubai - UAE

Warehouse, Office & Showroom

Sharjah - UAE

Warehouse

Product Description

The DCONNECT LDF-6000D-400 200-400µm Big Core Fusion Splicer is a professional large-core fiber optic fusion splicing machine designed for optical fibers ranging from 200µm to 400µm. It features six-motor fiber core alignment and patented dual V-groove technology for precise fiber positioning and stable splicing performance. The machine supports MM200, 250µm, 300µm, 350µm, 400µm and GDF25/250µm fibers, with coating diameters from 200µm to 3000µm. With an 18-second fastest splicing time for 400µm fiber, multiple splice and heating modes, high-precision loss estimation, automatic splice data storage, and an 8400mAh high-capacity battery, it is suitable for specialty fiber installation, telecom networks, industrial optical networks, fiber maintenance, and professional field applications.

Applications

Data Center

Server Rooms

Telecom Facilities

Network Infrastructure

Security & Surveillance Systems

Government

Banking

Healthcare

Education

Technical Specifications

Product Name	D-CONNECT LDF-6000D-400 200-400µm big core fusion splicer
Size	310x215x108(mm)
Fiber Alignment	6 motor core alignment
Fiber Type	Single fiber
Fiber Holder	250-420 (μm)
Applicable Fiber	MM200, 250, 300, 350, 400 (μm), GDF25/250 (μm)
Fiber Clading Diameter	200-400 (μm)
Fiber Coating Diameter	200-3000 (μm)
Cleave Length	6-16 mm
Splice Mode	Total 200 modes
Splicing Time	18s for 400μm fiber (Fastest mode)
Heating Mode	Total 30 modes
Heating Time	12s (Fastest mode)
Application Protection Sleeve	10-60mm
Splice Image Storage	Max. 800 (Automatic Loop Storage)
Splice Result Storage	Max. 20000 (Automatic Loop Storage)
Average Splicing Loss	MM 0.1dB
Return Loss	＞60dB
Loss Estimation Mode	High precision loss estimation
Fiber Tensile Test Force	1.96-2.25N
Display	4.3 inch 800×480 pixels high resolution display
Visual System	X and Y dual view display 100 times on the same screen; X or Y single view independent display at 150x magnification
Connection Port	high speed USB port
Electrodes Life	Typical 2000 splices
Power & Battery	AC100-240V, 50/60Hz; 8400mAh high-capacity battery, supporting continuous splicing and heating for more than 320 times; Standard charging time of 5 hours (4 hours to charge to 80%)
Operating & Storage Conditions	Operation: Altitude 0-5000m, Temperature -20 to 50℃, Humidity 0-95%RH, Max. wind 15m/sec; Storage: Temperature -40 to 80℃ (Battery: -10 to 40℃), Humidity 0-95%RH

Downloads

PRODUCT CATALOGUE

PRODUCT DATASHEET

CERTIFICATIONS

Frequently Asked Questions

1. What is the DCONNECT LDF-6000D-400 Big Core Fusion Splicer?

The DCONNECT LDF-6000D-400 is a professional 200-400µm big core fiber optic fusion splicer designed for precise splicing of large-core and specialty optical fibers, featuring six-motor core alignment, dual V-groove technology, fast 18-second splicing, and an 8400mAh high-capacity battery.

2. What fiber sizes are supported by the DCONNECT LDF-6000D-400?

The DCONNECT LDF-6000D-400 supports MM200, 250µm, 300µm, 350µm, 400µm and GDF25/250µm fibers, with a 200-400µm fiber cladding diameter and 200-3000µm fiber coating diameter.

3. How fast can the DCONNECT LDF-6000D-400 perform fiber splicing?

The DCONNECT LDF-6000D-400 provides a fastest splicing time of 18 seconds for 400µm fiber and a fastest heating time of 12 seconds, with 200 splice modes and 30 heating modes.

4. What alignment technology does the DCONNECT LDF-6000D-400 use?

The DCONNECT LDF-6000D-400 uses six-motor fiber core alignment and patented dual V-groove technology for accurate fiber positioning and stable large-core fusion splicing performance.

5. How much battery capacity does the DCONNECT LDF-6000D-400 have?

The DCONNECT LDF-6000D-400 features an 8400mAh high-capacity battery supporting more than 320 continuous splicing and heating operations, with AC100-240V, 50/60Hz power input.

6. Where can the DCONNECT LDF-6000D-400 Big Core Fusion Splicer be used?

The DCONNECT LDF-6000D-400 is suitable for specialty fiber installation, telecom networks, industrial optical networks, fiber optic maintenance, and professional field applications requiring reliable large-core fiber fusion splicing.
