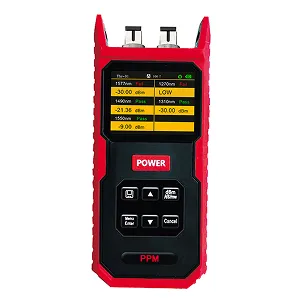

DCONNECT TC-105 XGPON/XGSPON Power Meter

The DCONNECT TC-105 XGPON/XGSPON Power Meter is a professional optical power meter developed for modern PON and FTTx network testing where accurate measurement of multiple optical wavelengths is required. Unlike conventional power meters that measure combined downstream or upstream power, the TC-105 provides sub-wavelength measurement for 1270nm, 1310nm, 1490nm, 1550nm, and 1577nm signals, supporting accurate testing across EPON, GPON, XGPON, and XGSPON networks. Its threshold setting and alarm function help technicians quickly determine whether measured optical power meets configured requirements. The integrated 650nm visual fault locator provides an additional tool for fiber identification and fault checking. With a measurement range of up to -50 to +20dBm depending on wavelength, 0.01dB display resolution, 999-result data storage, FC/SC/ST compatibility, adjustable automatic shutdown from 5 to 90 minutes, and more than 36 hours of continuous operation with the optional rechargeable battery, the DCONNECT TC-105 is suitable for FTTH deployment, PON network acceptance, optical fiber troubleshooting, commissioning, and maintenance.
